CARGO

Stock: In stock
Cargo

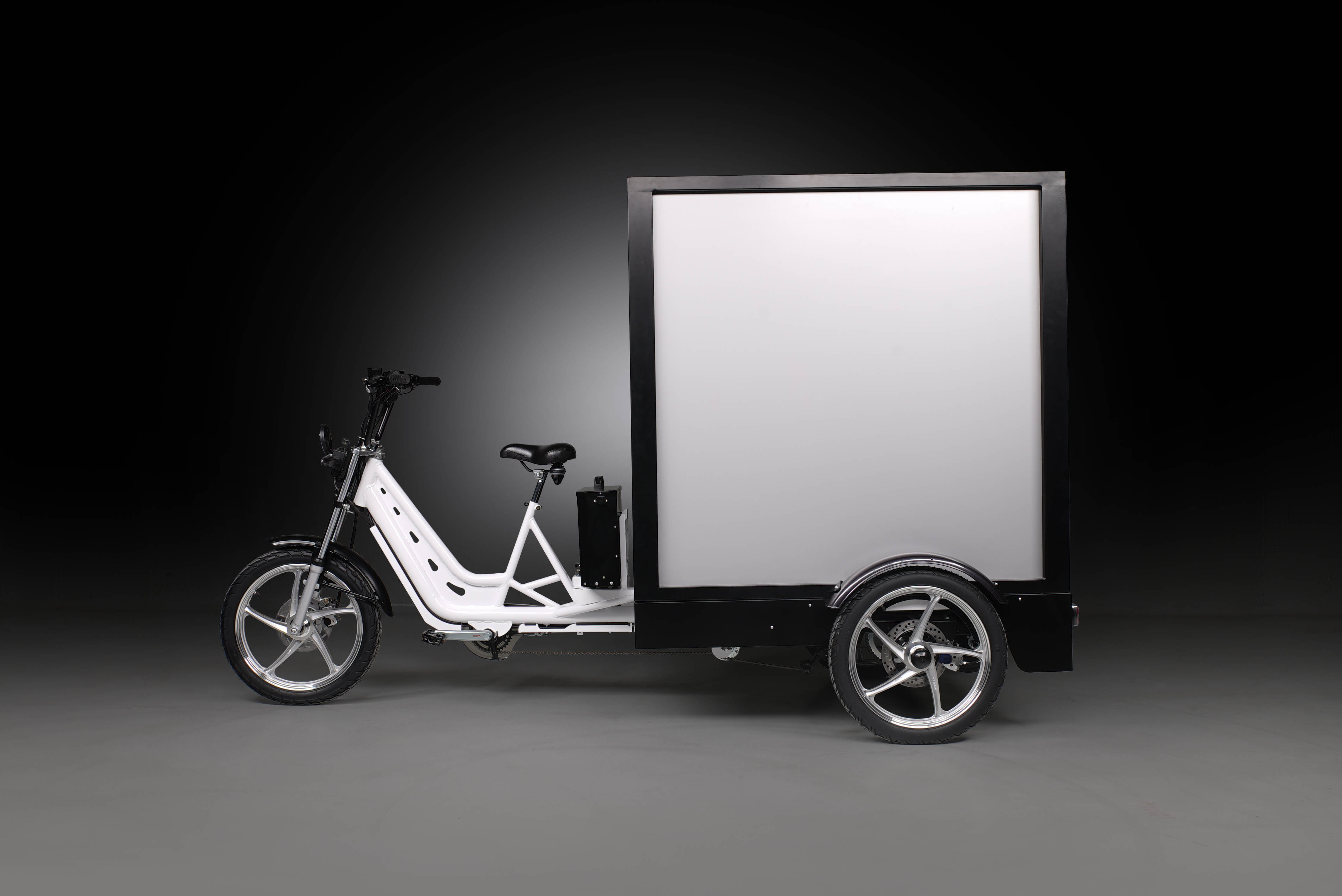

Our CARGO model is a specially designed electric bicycle that allows for efficient and eco-friendly transportation of goods, particularly in urban settings. It offers a practical and environmentally friendly solution for last-mile delivery, combining the agility of a bicycle with the capacity to carry significant amounts of cargo efficiently.
Product Code : CARGO
Frame   Robust tubular steel frame, hand-welded

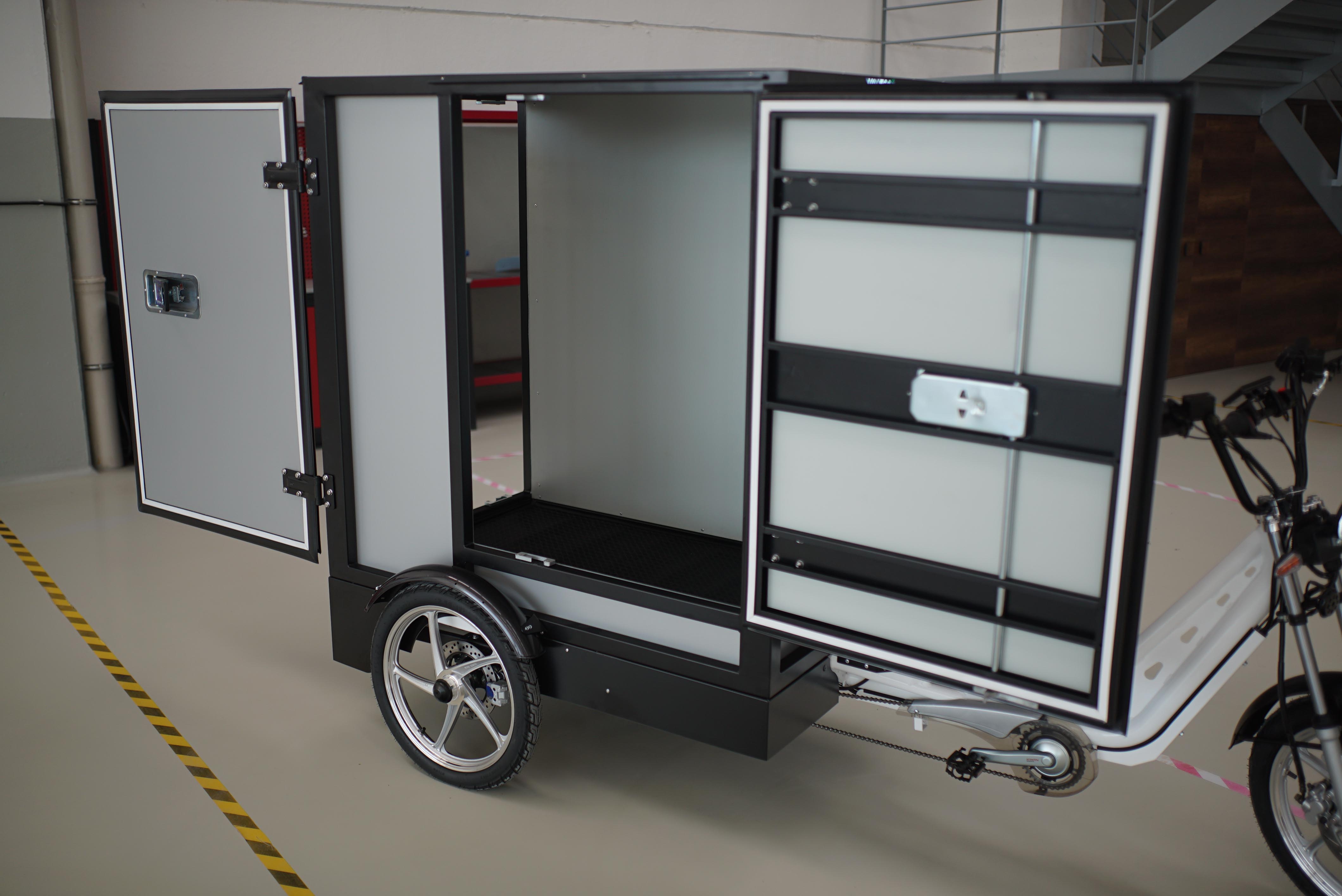

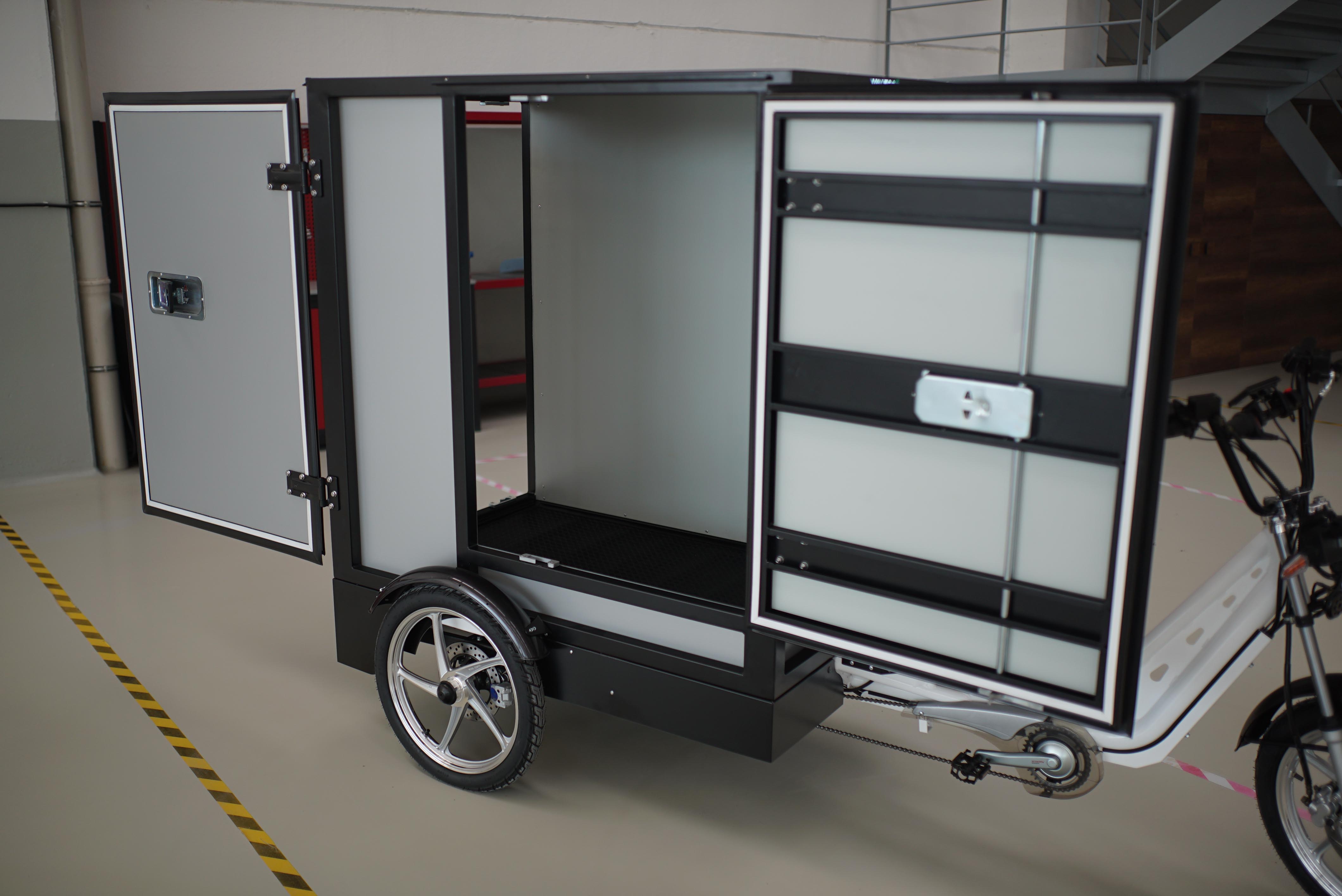

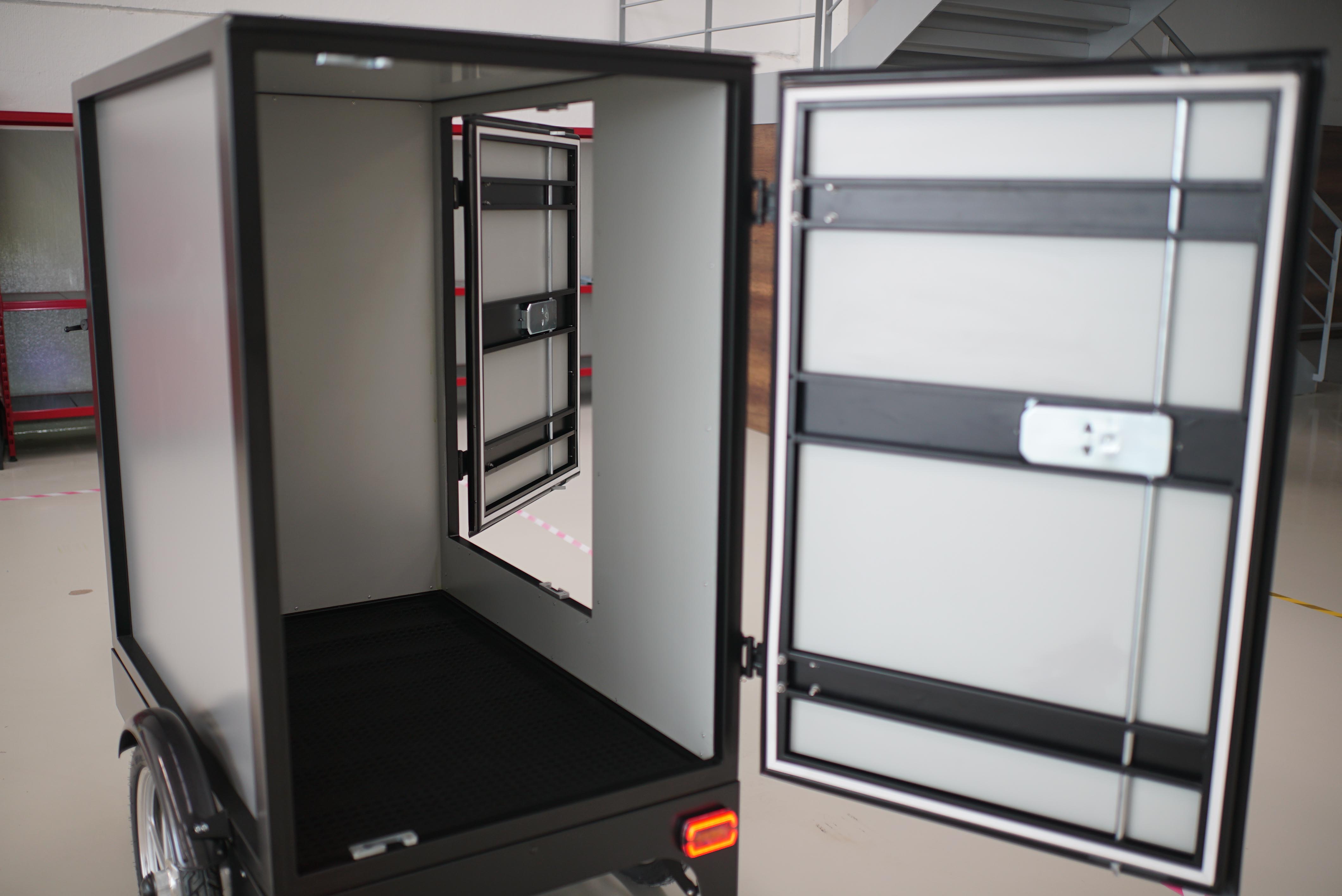

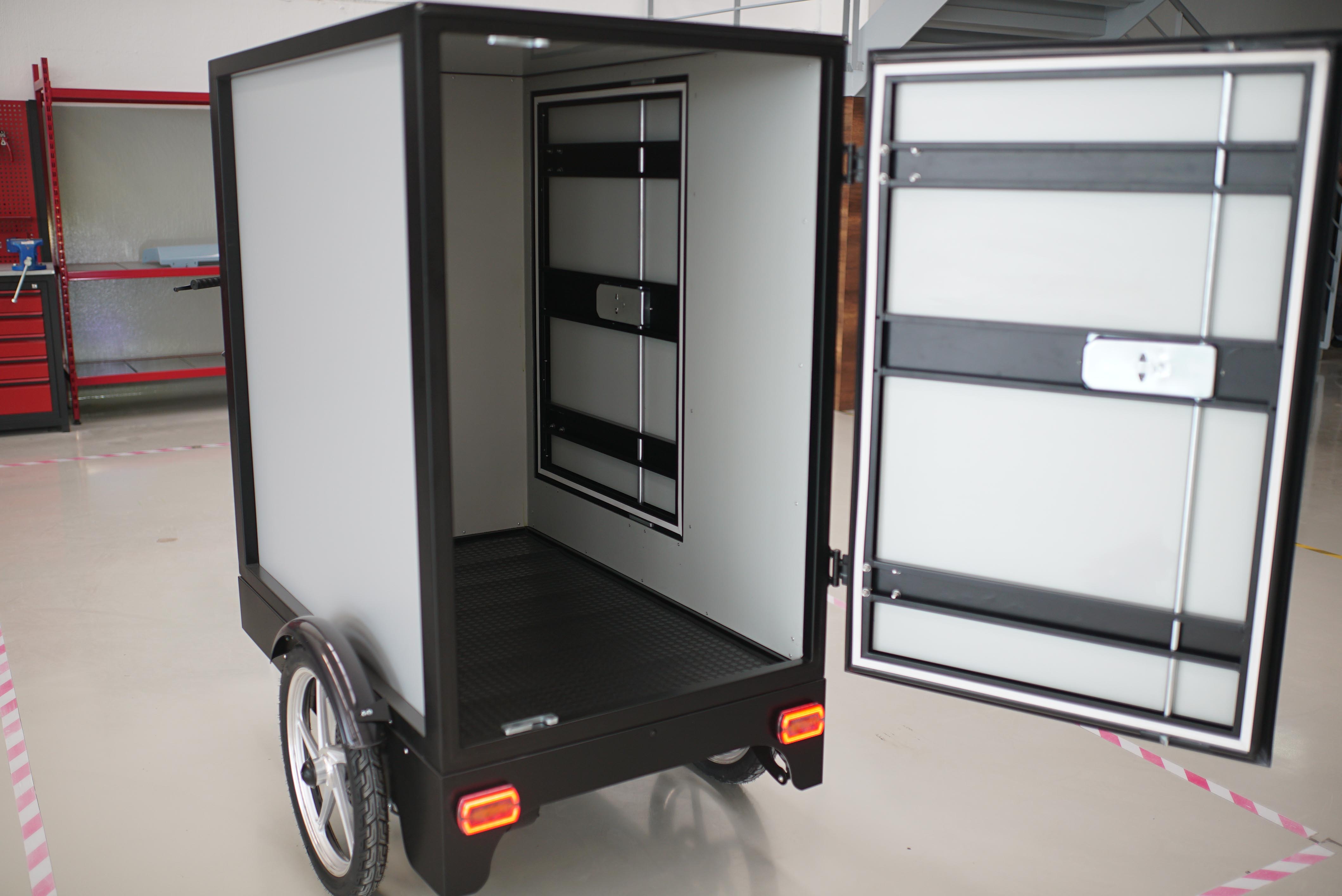

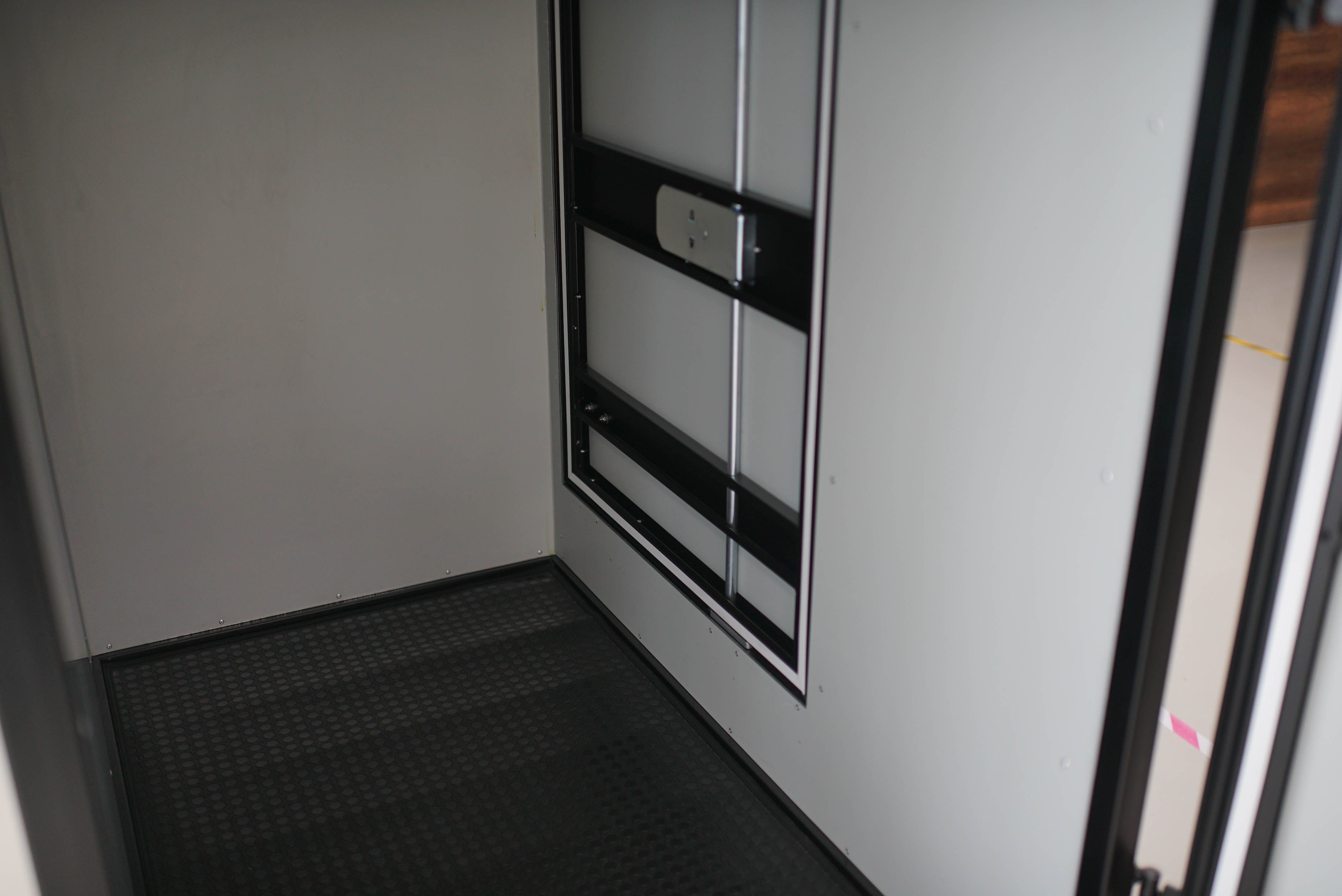

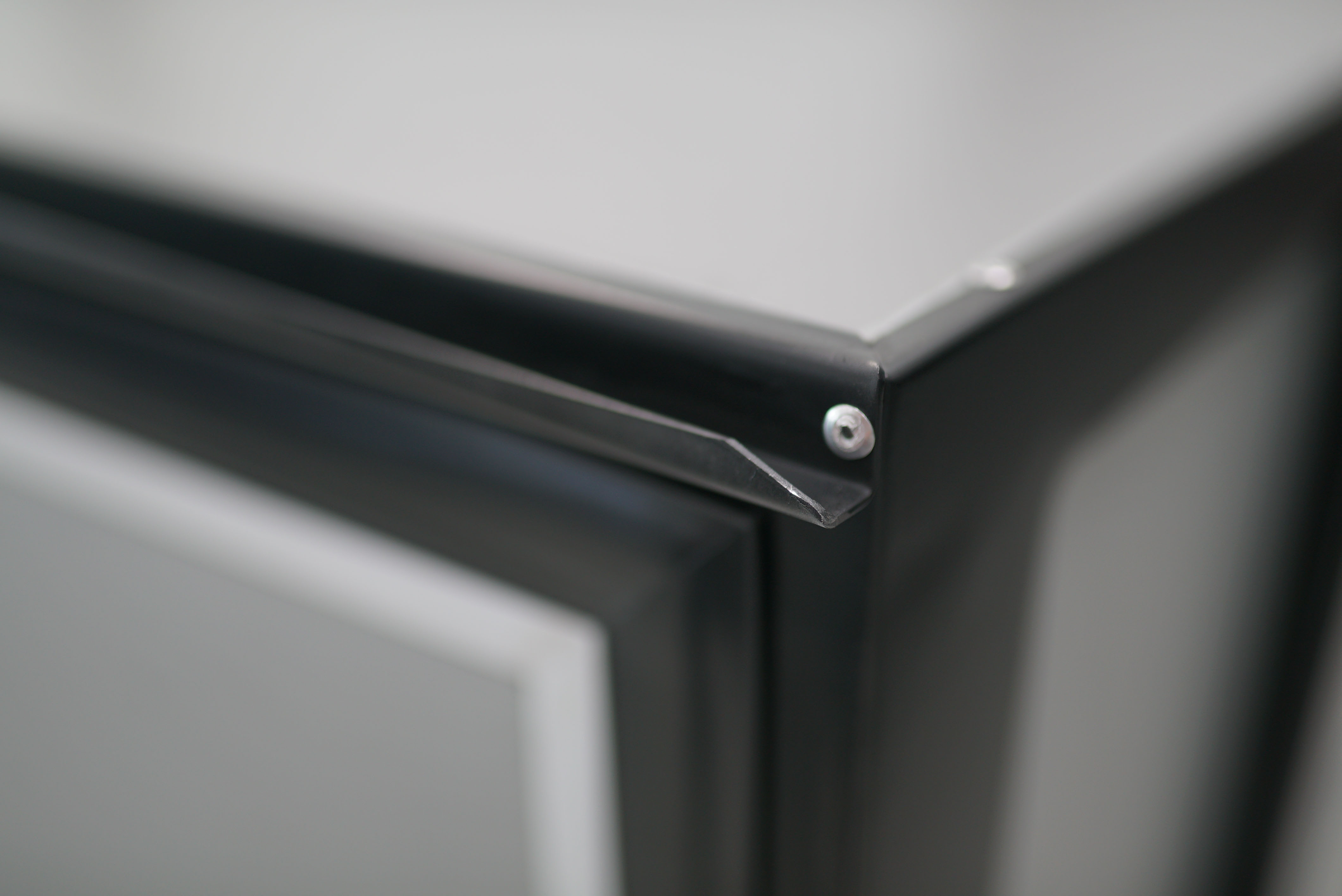

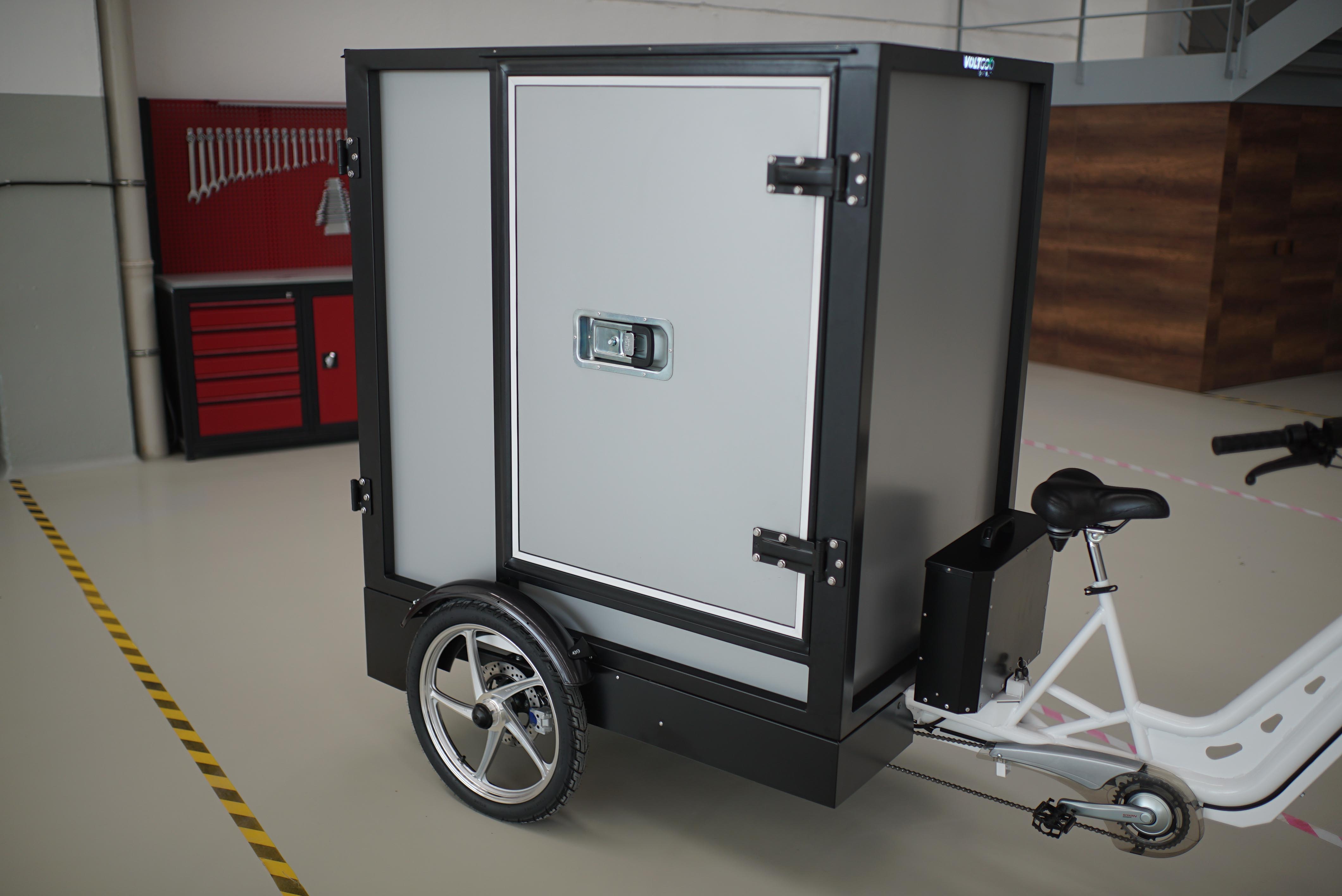

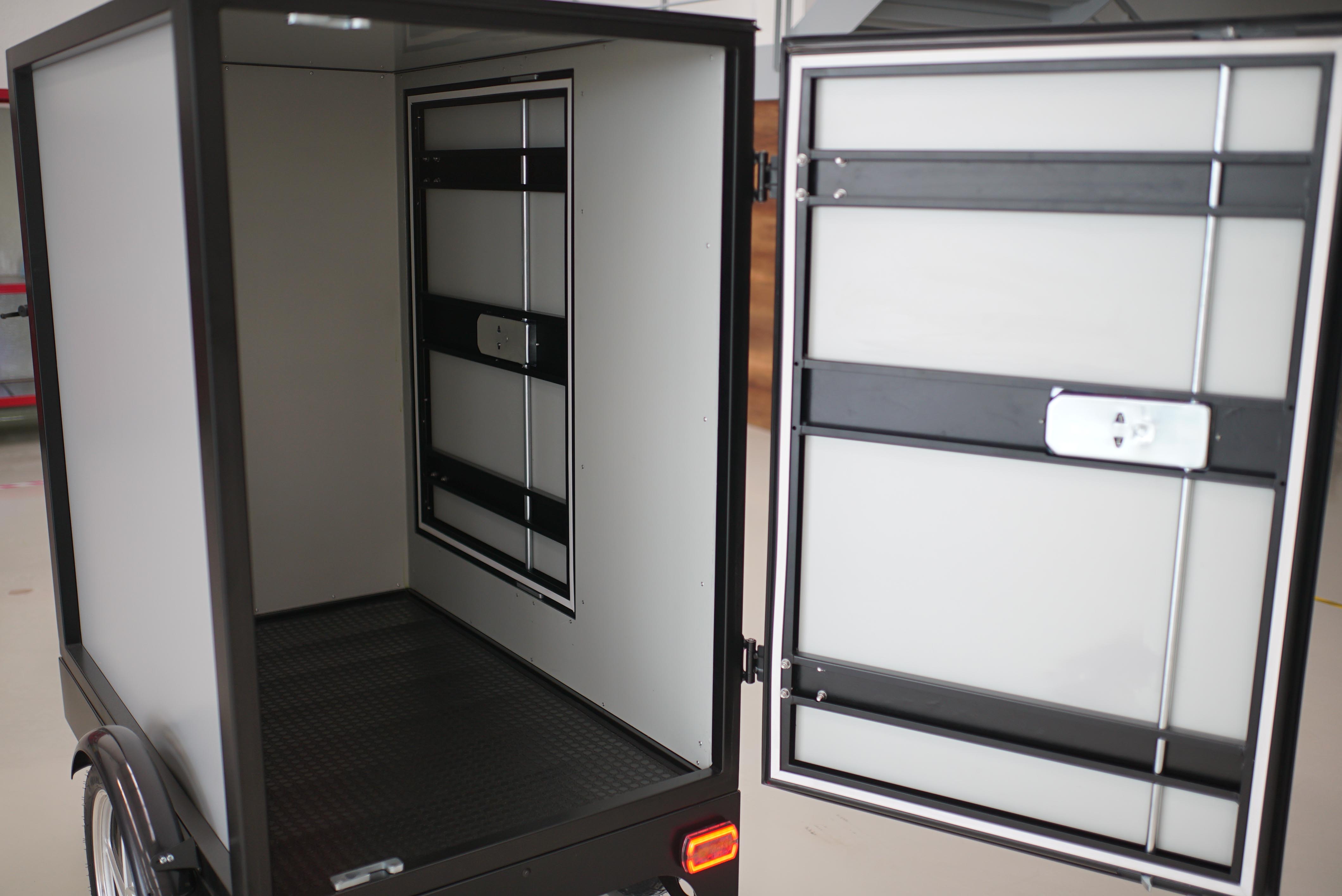

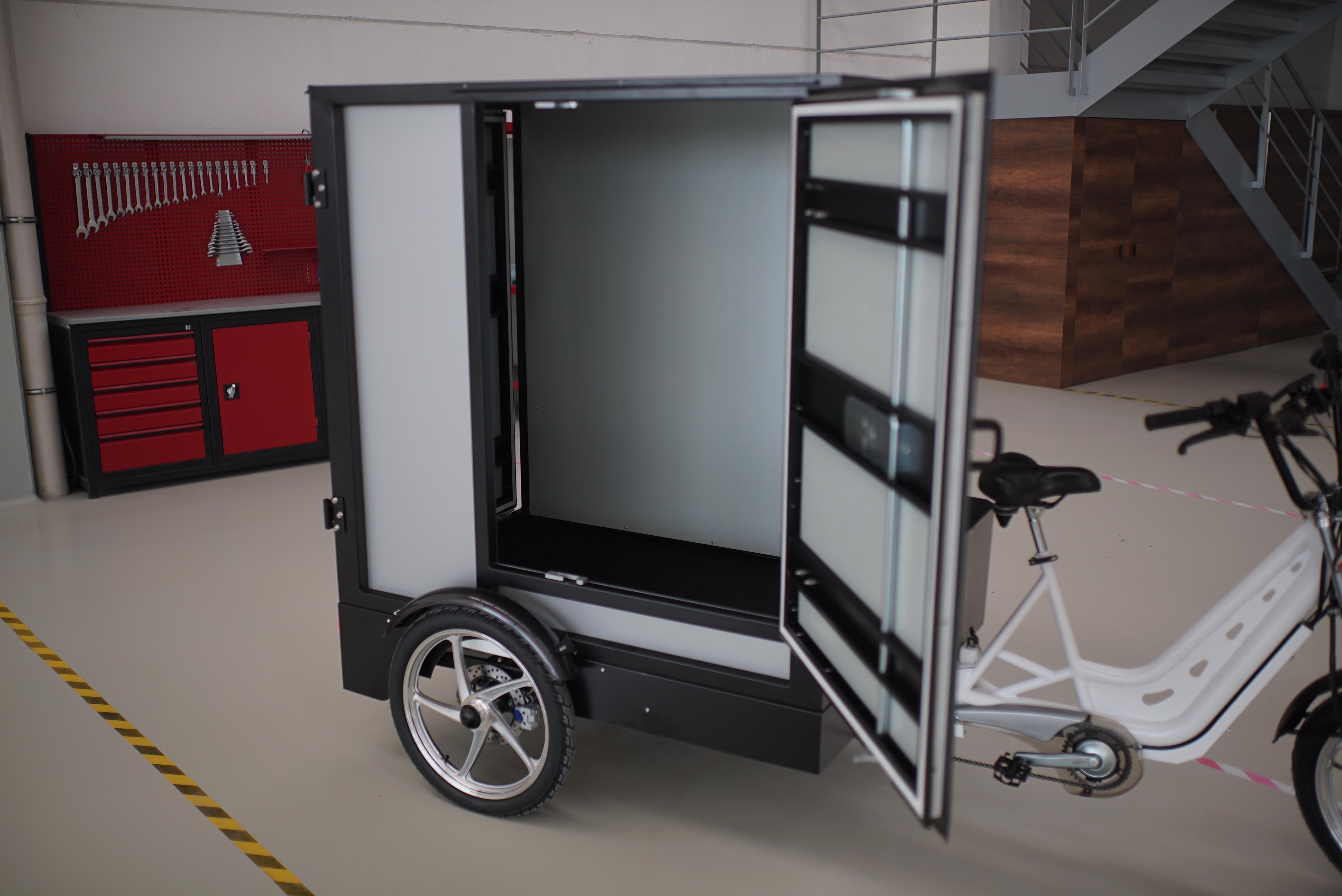

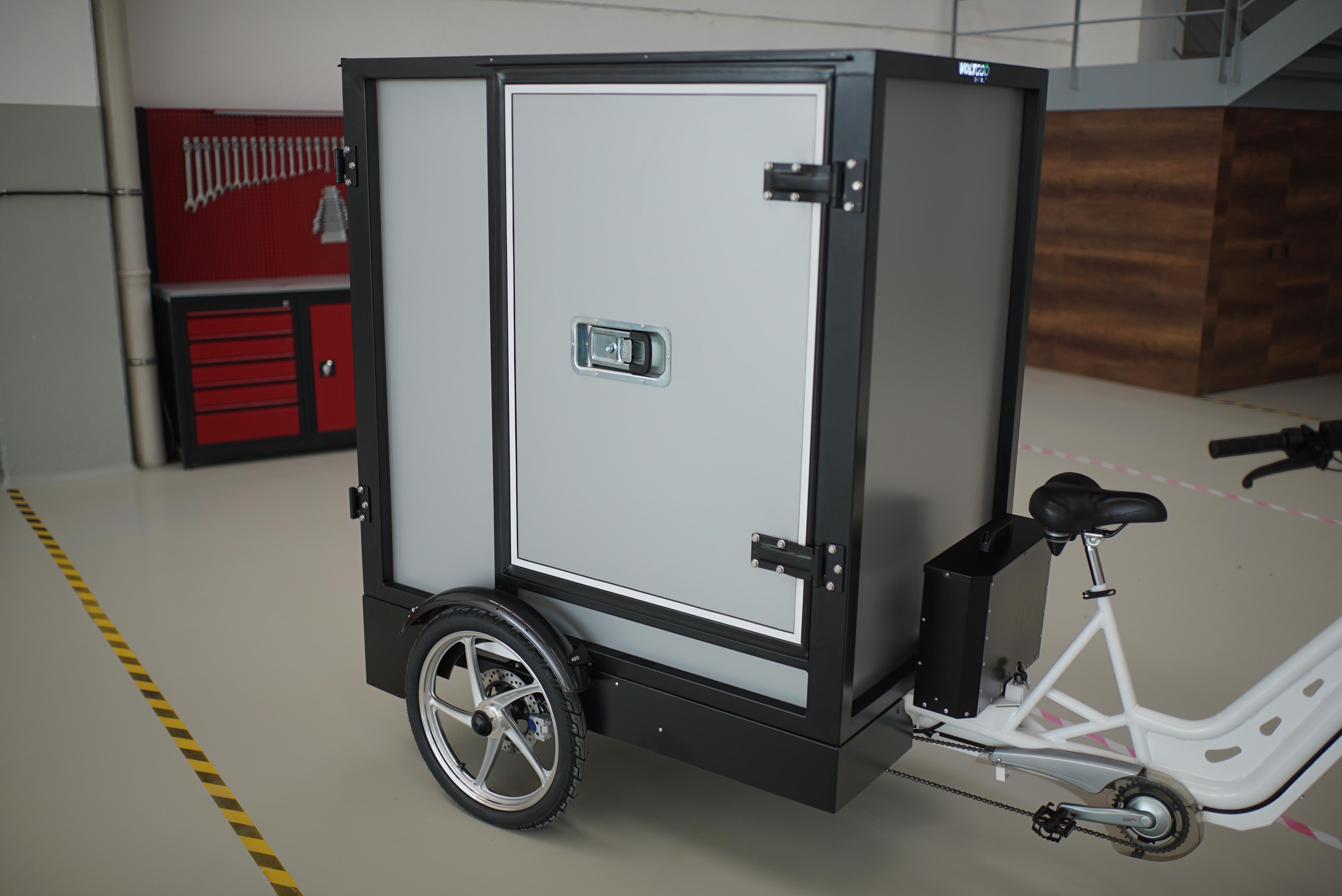

Embodiment   CARGO box with aluminium panels (EU-Palette size)

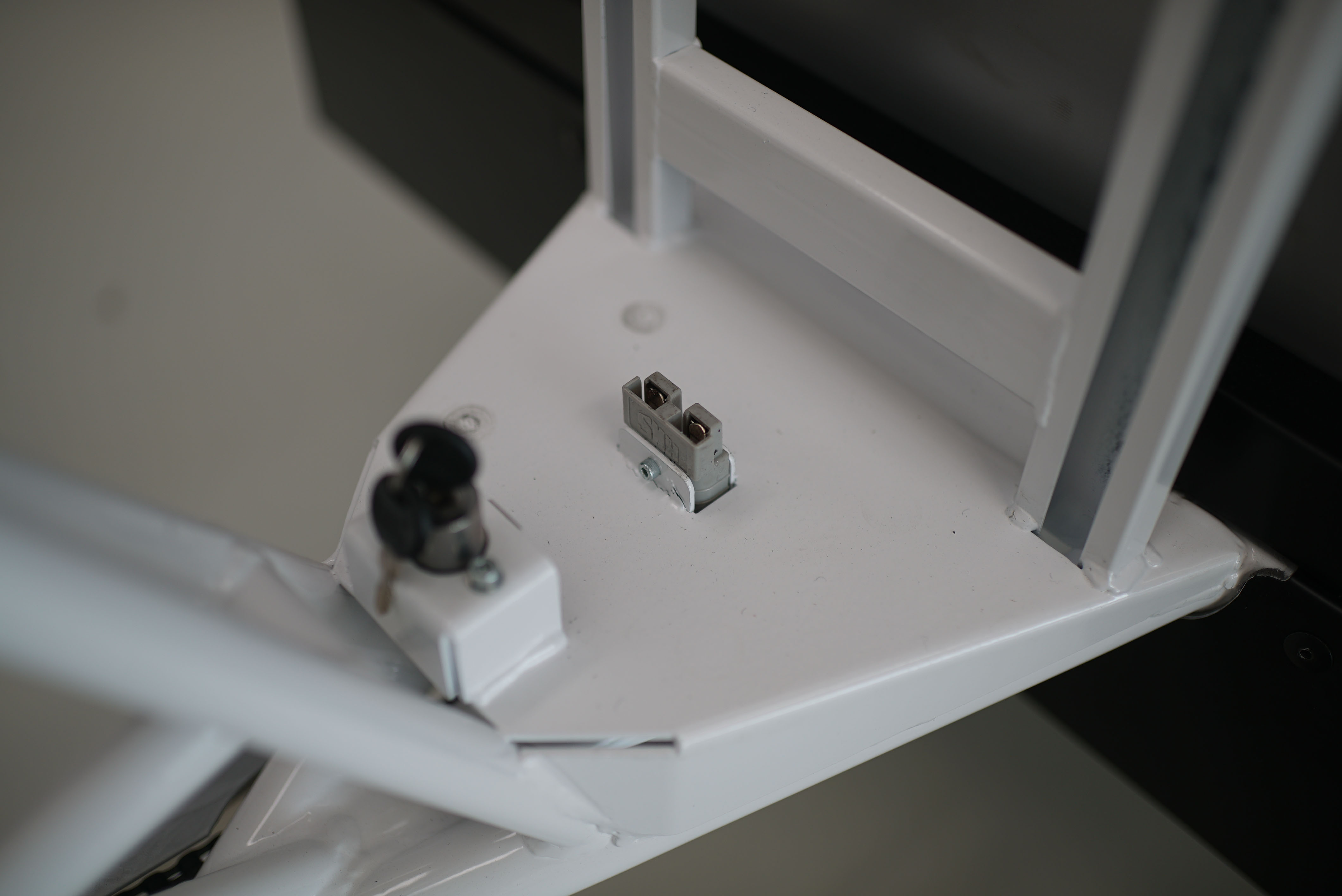

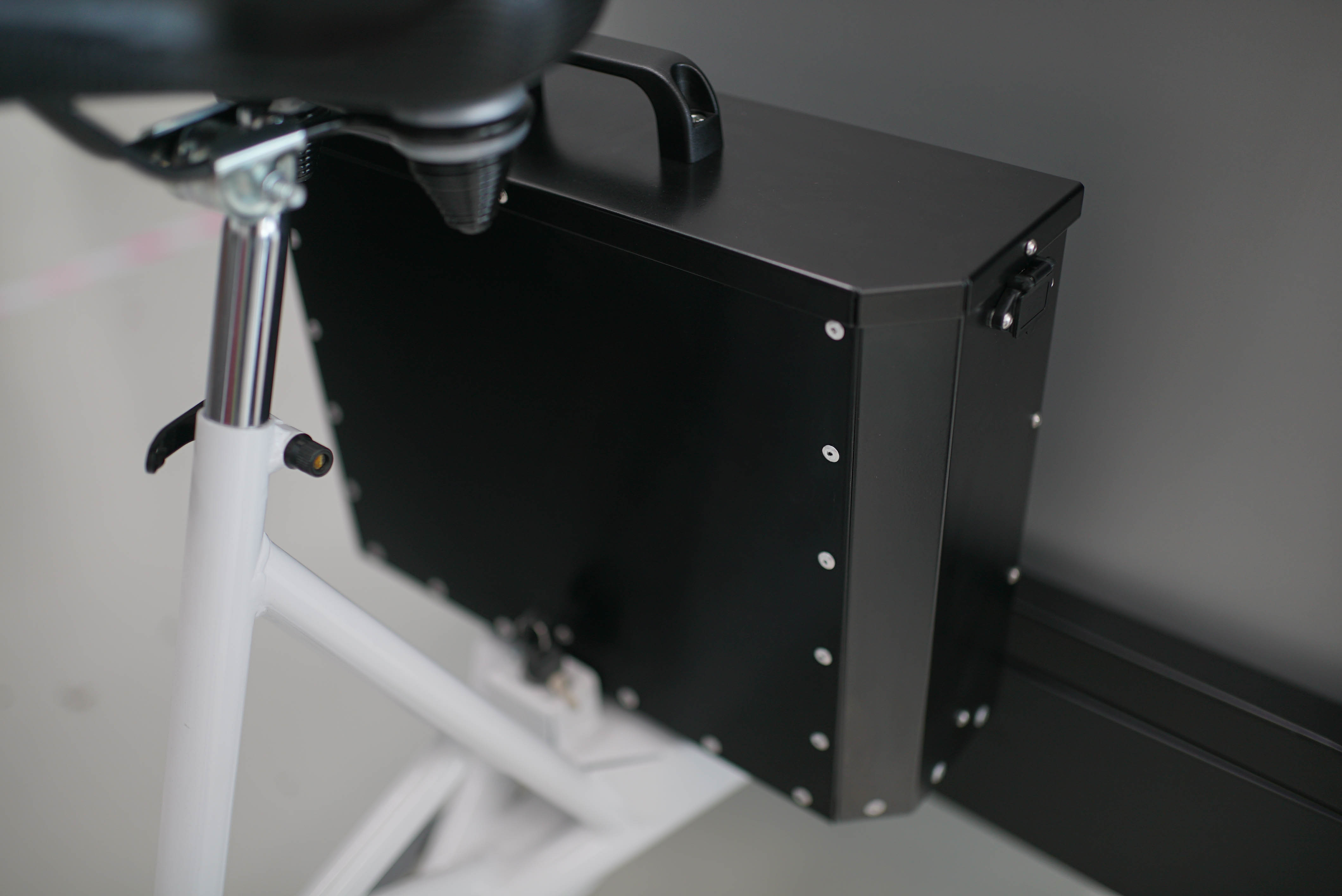

Electric Engine   Pedelec 48 Volt 250-Watt BLDC engine + swappable 1152 Wh LiFePo4 battery with Bluetooth interface

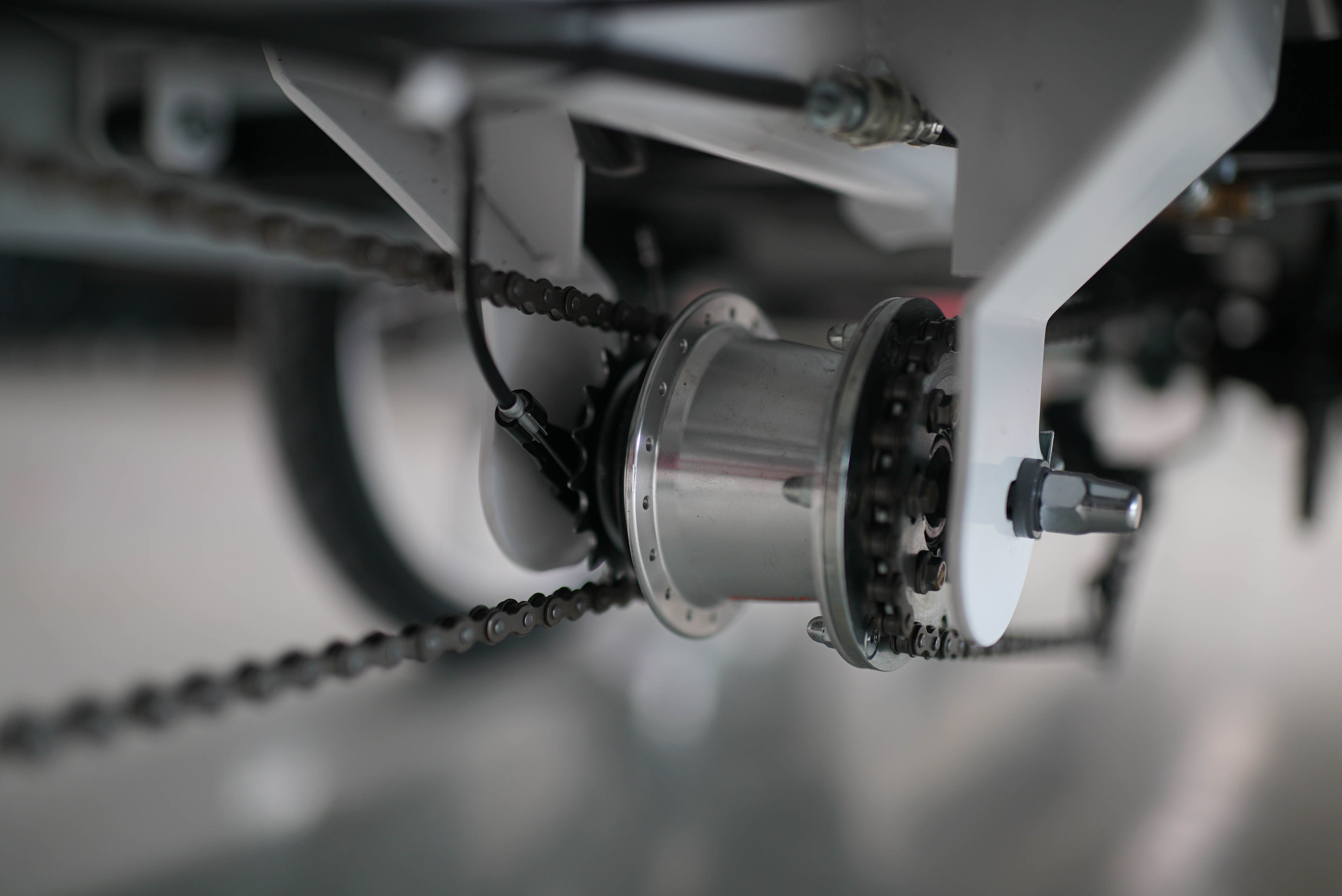

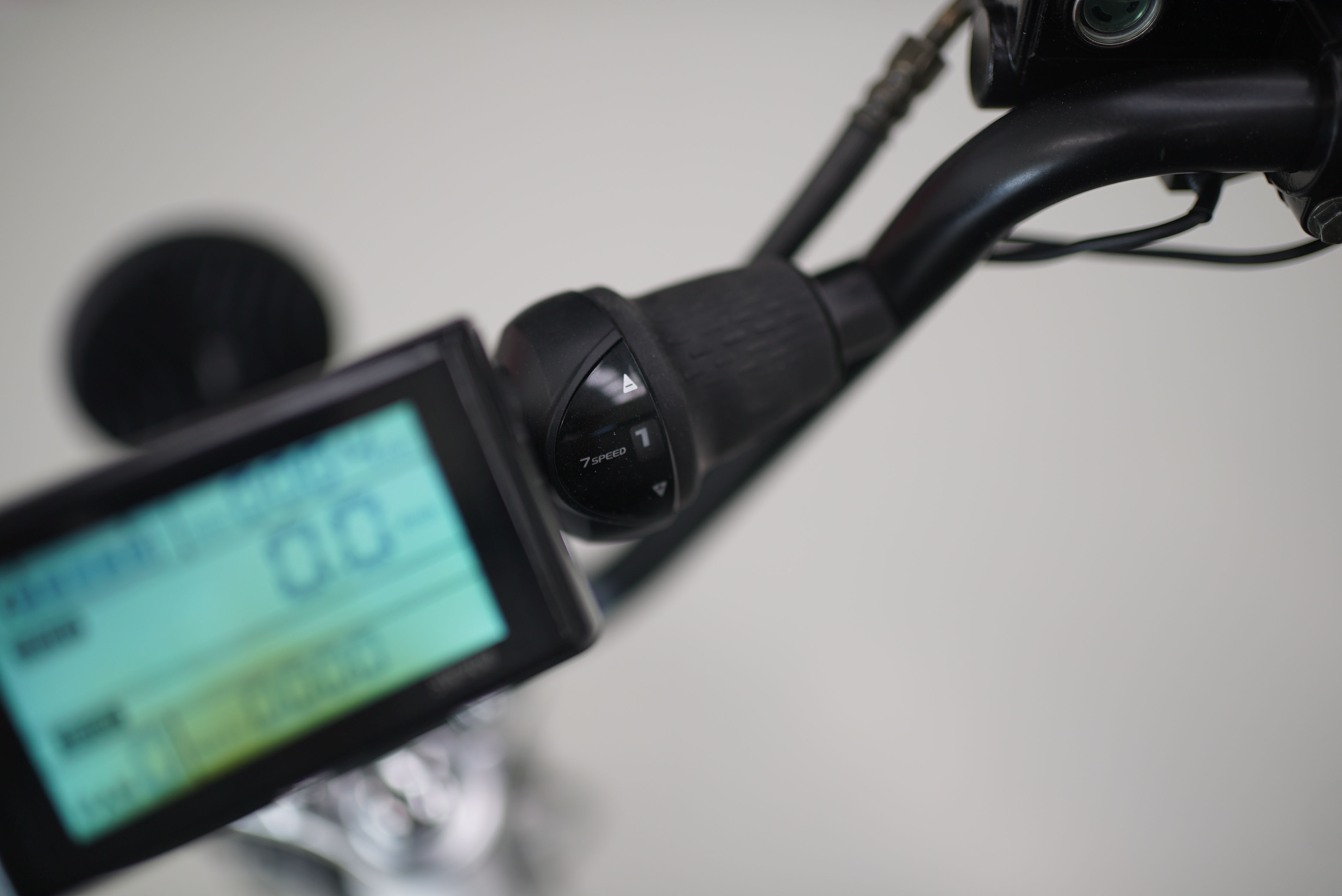

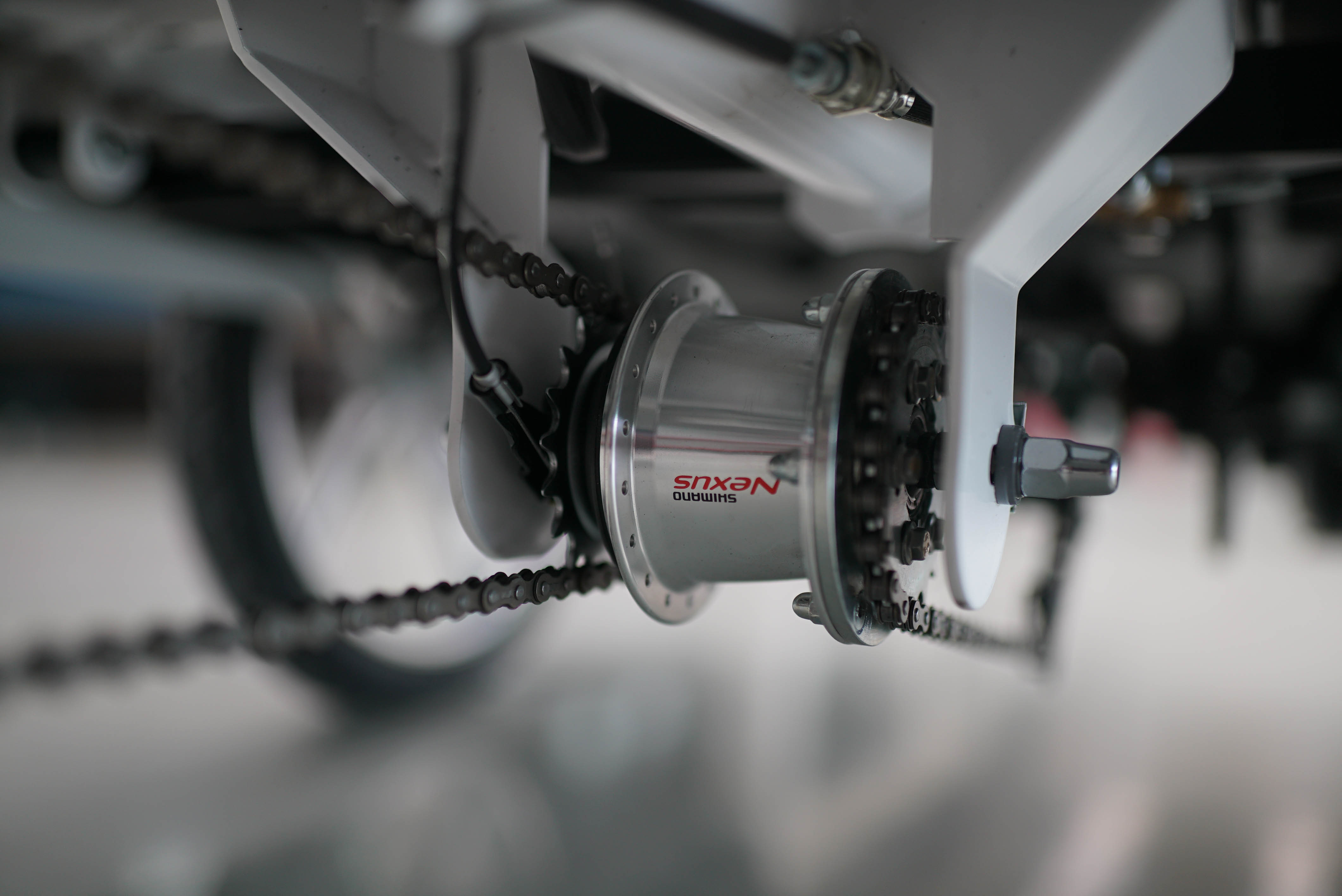

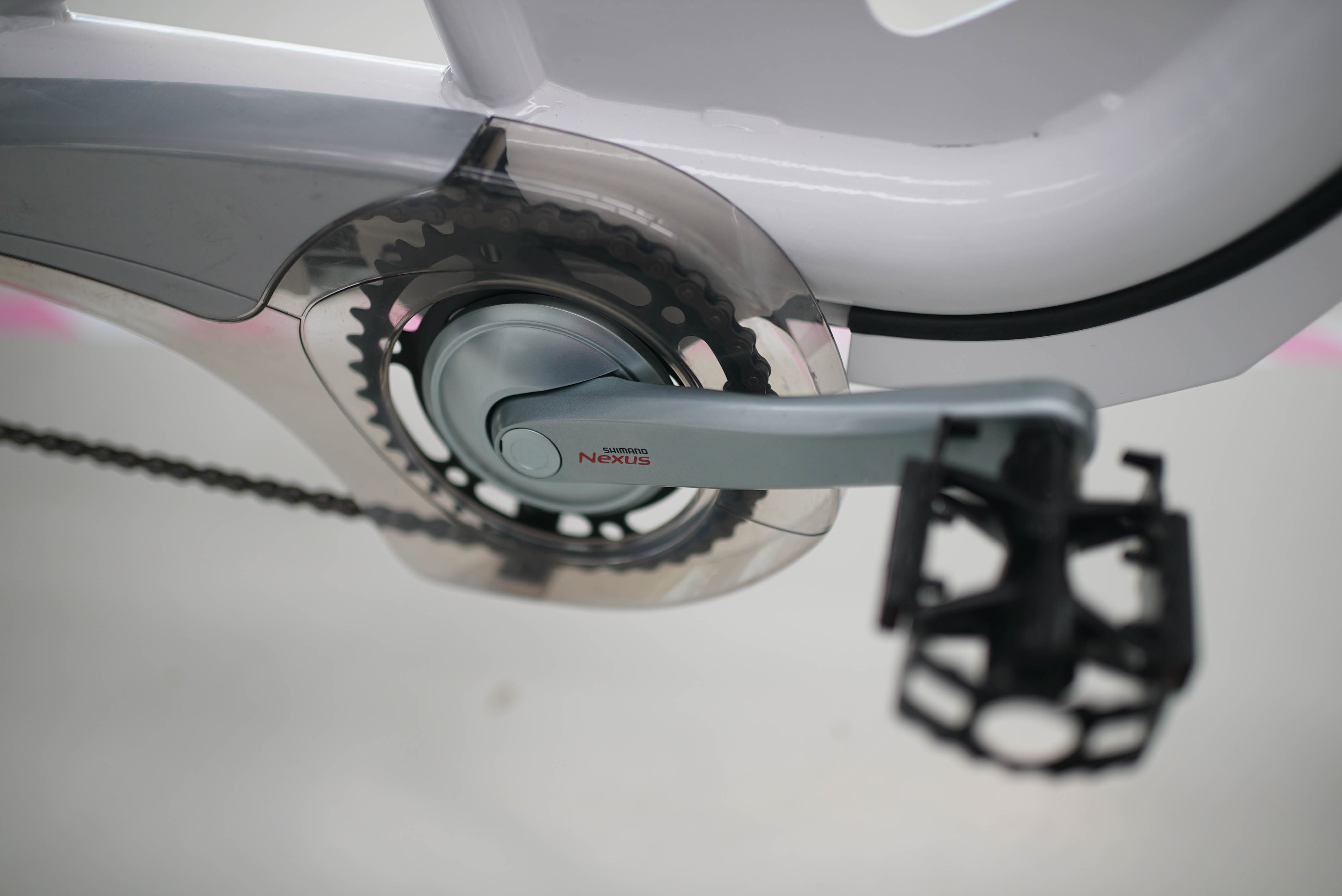

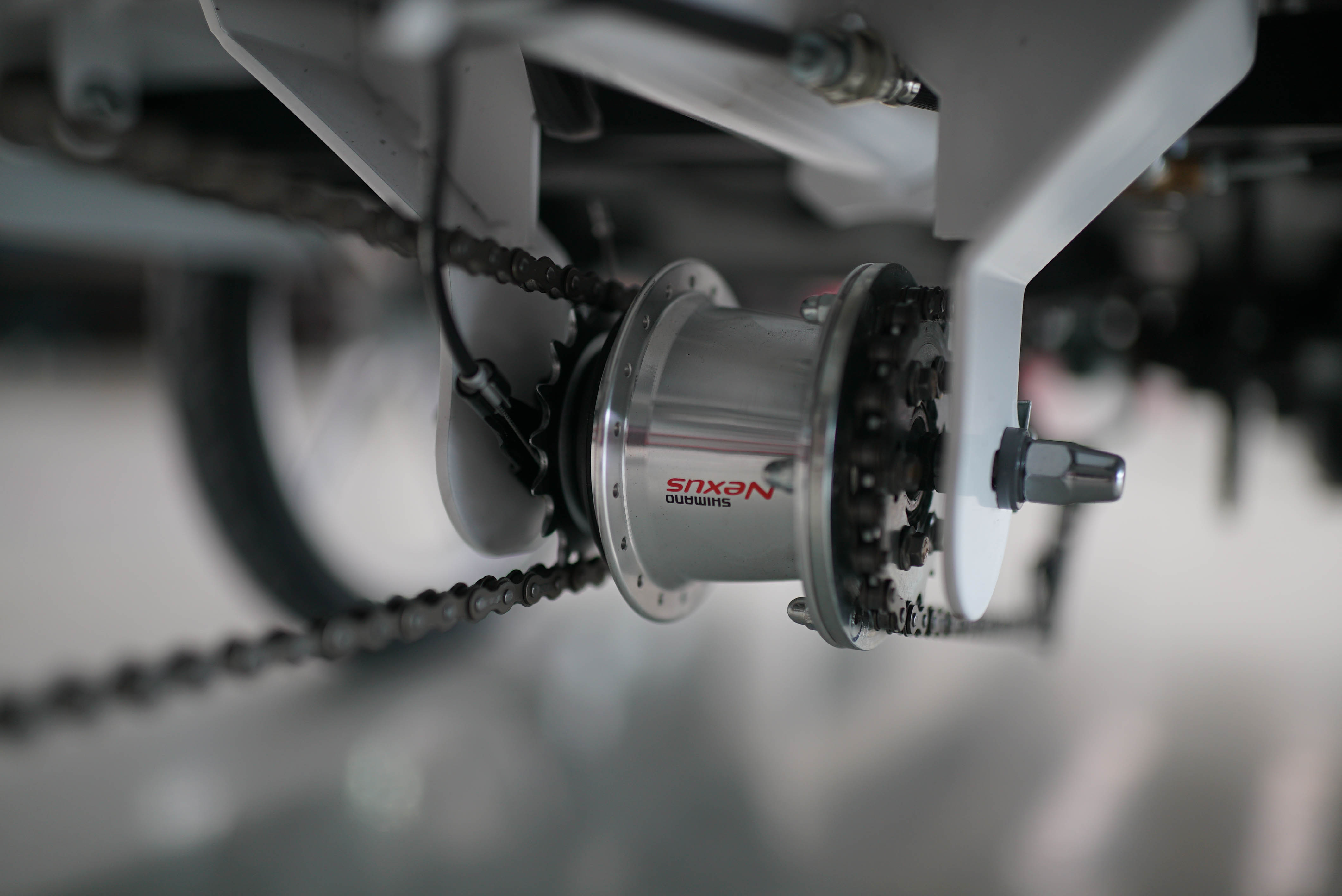

Drive Train System   SHIMANO Nexus 8-Speed
Suspension Fork   Solid, CARGO-optimized double-bridge suspension fork (motorcycle components)

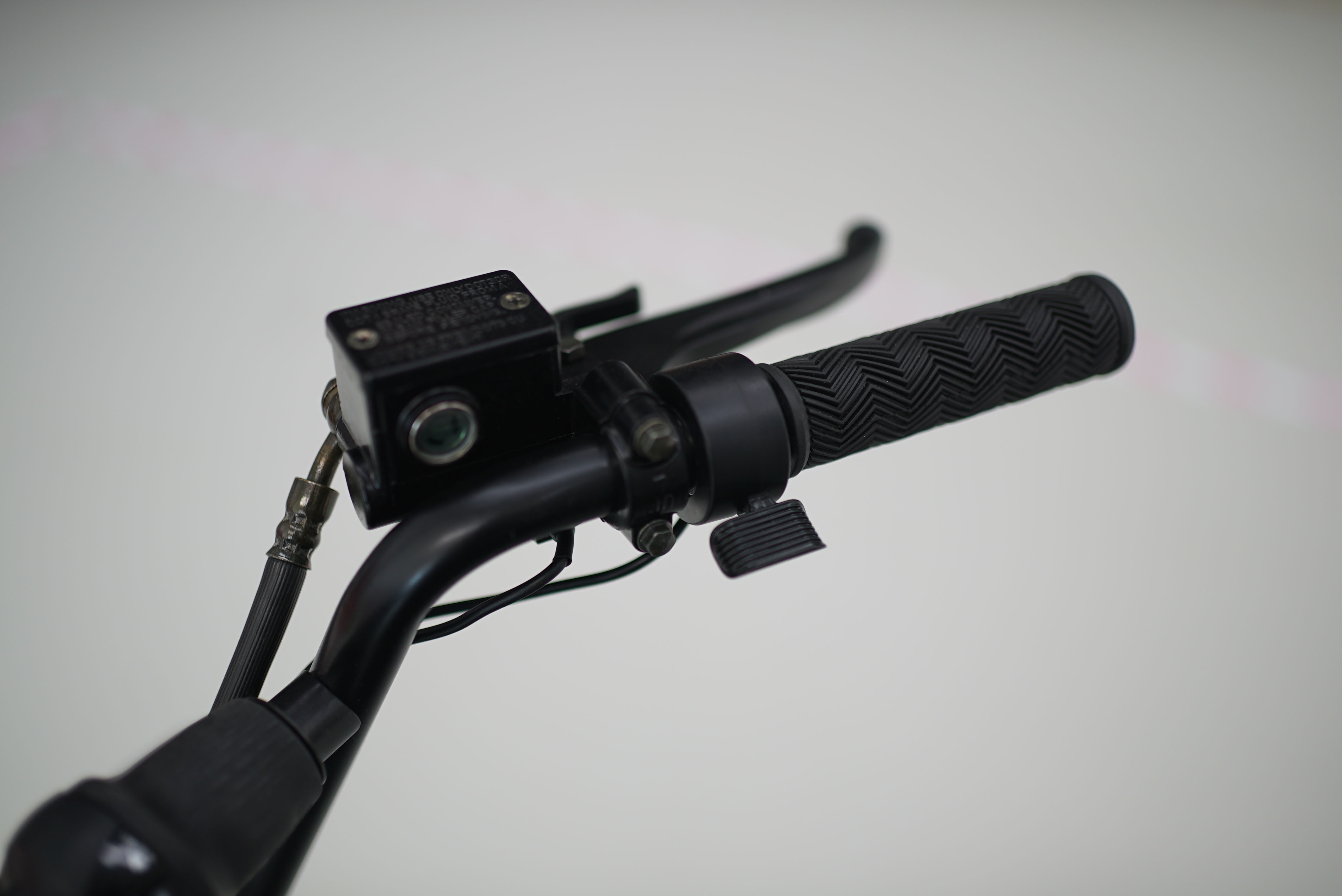

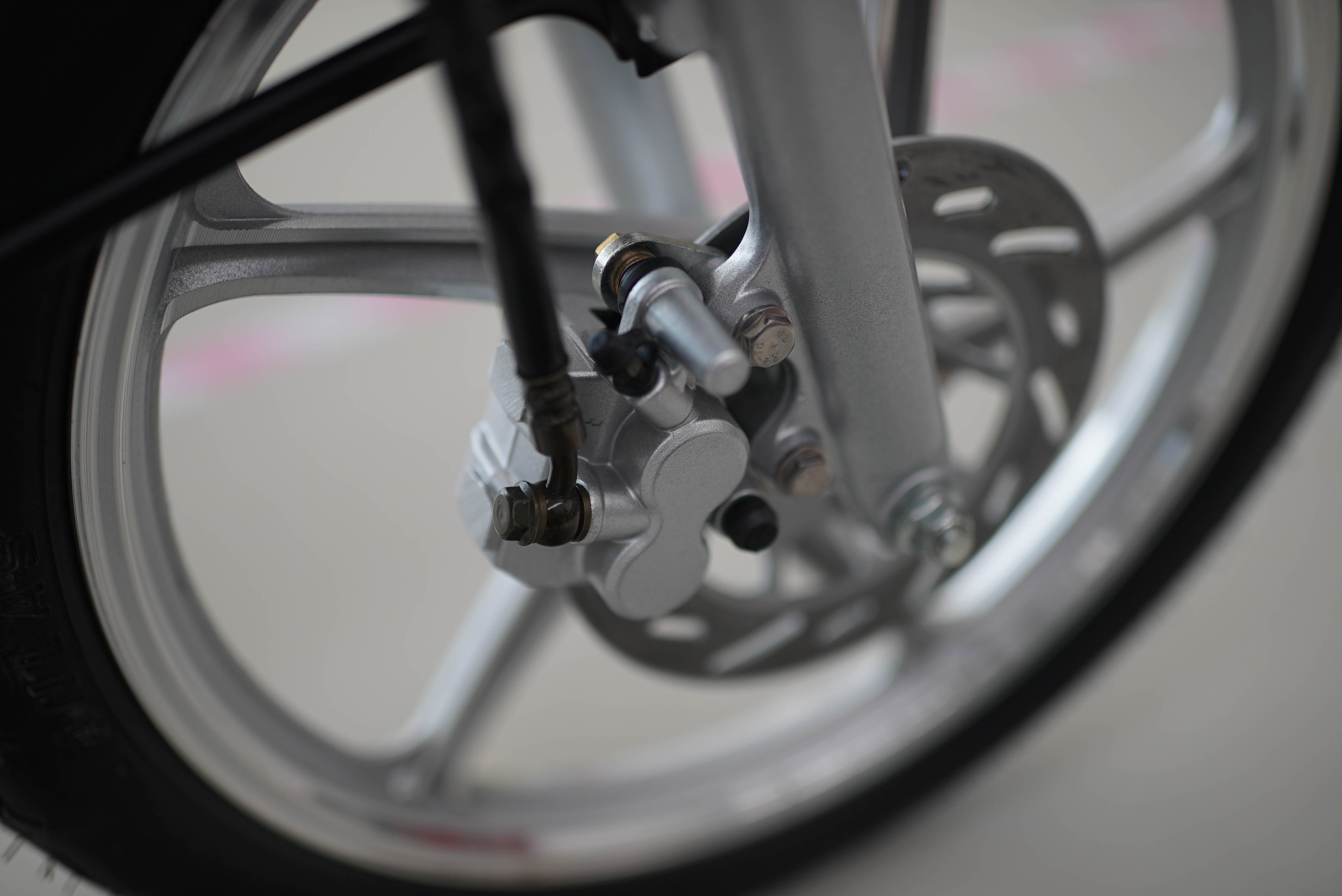

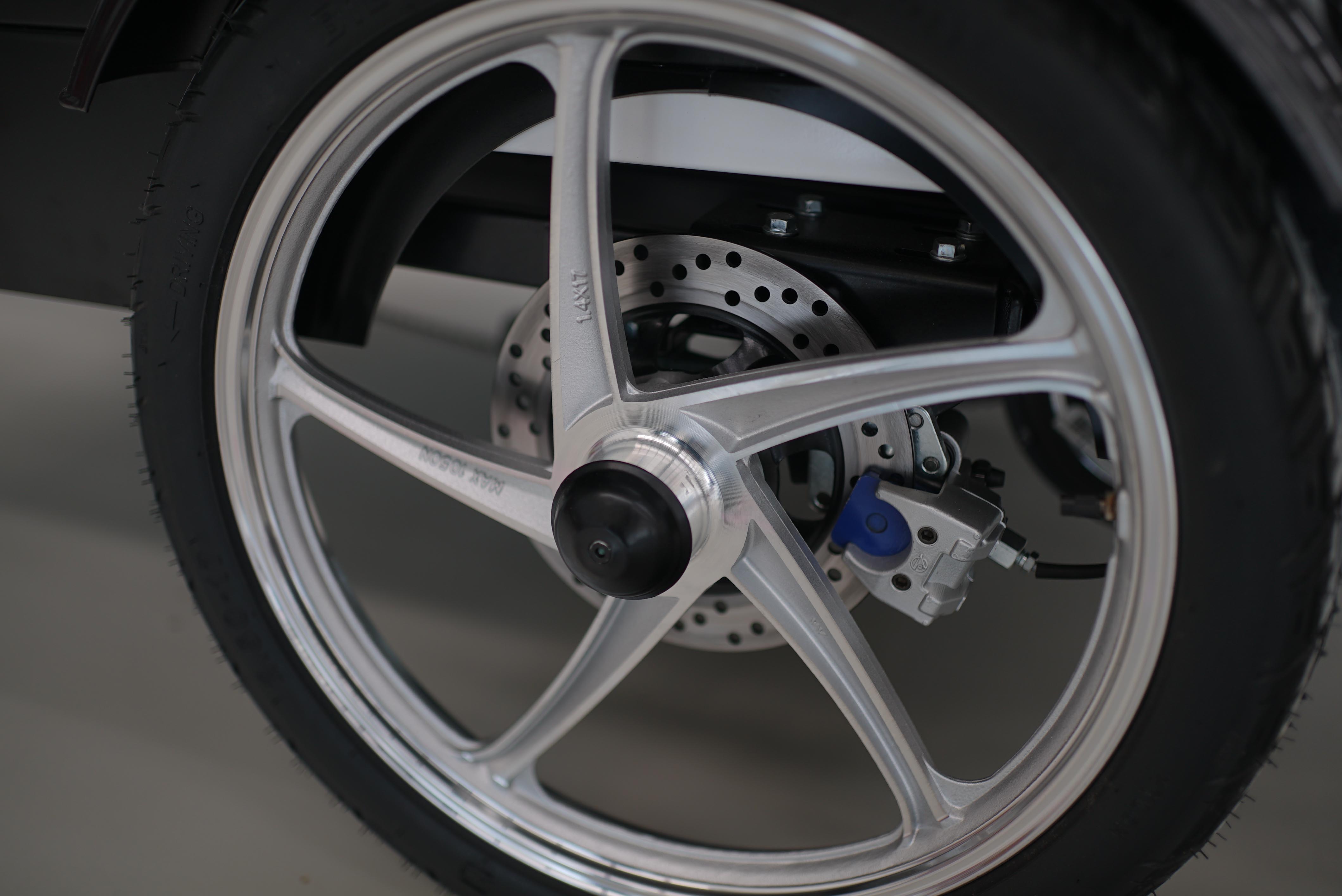

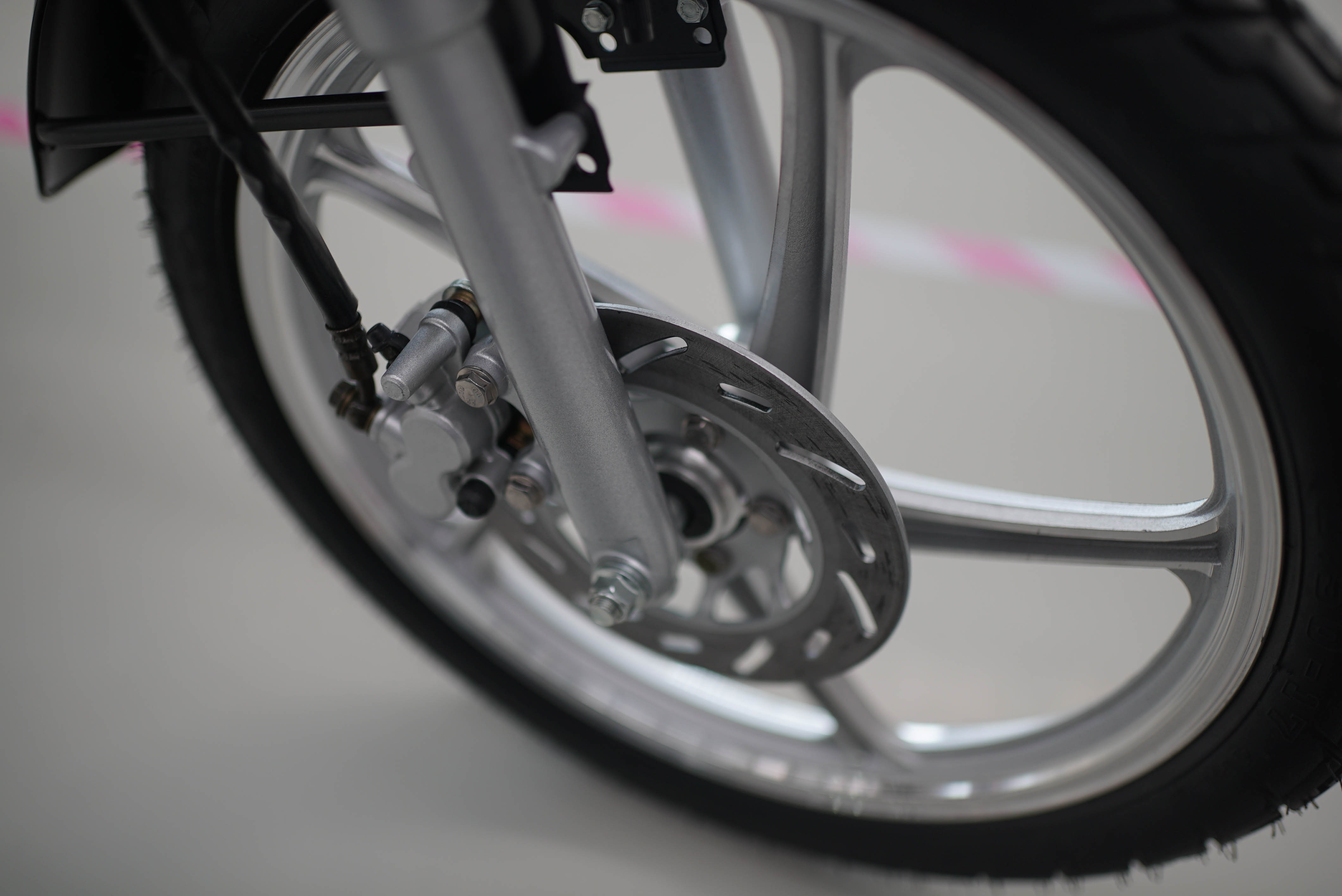

Breaking System   Hydraulic disc brakes (at each tire, front and rear, motorcycle components)
Suspension   Spring damper units for extra comfort (underneath the loading platform)
Wheels & Tires   17’’ Aluminium rims and heavy-duty tires for CARGO-Bikes

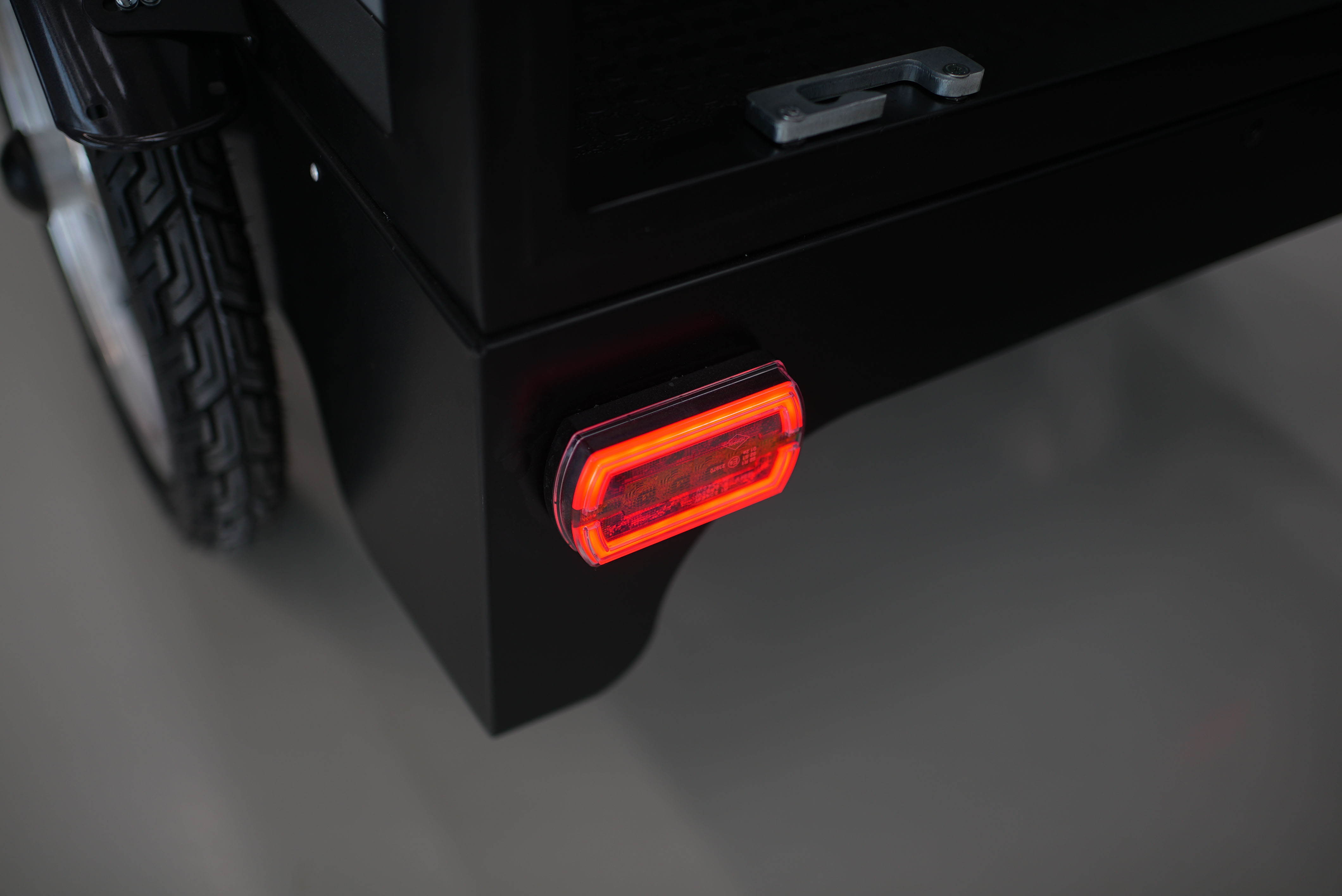

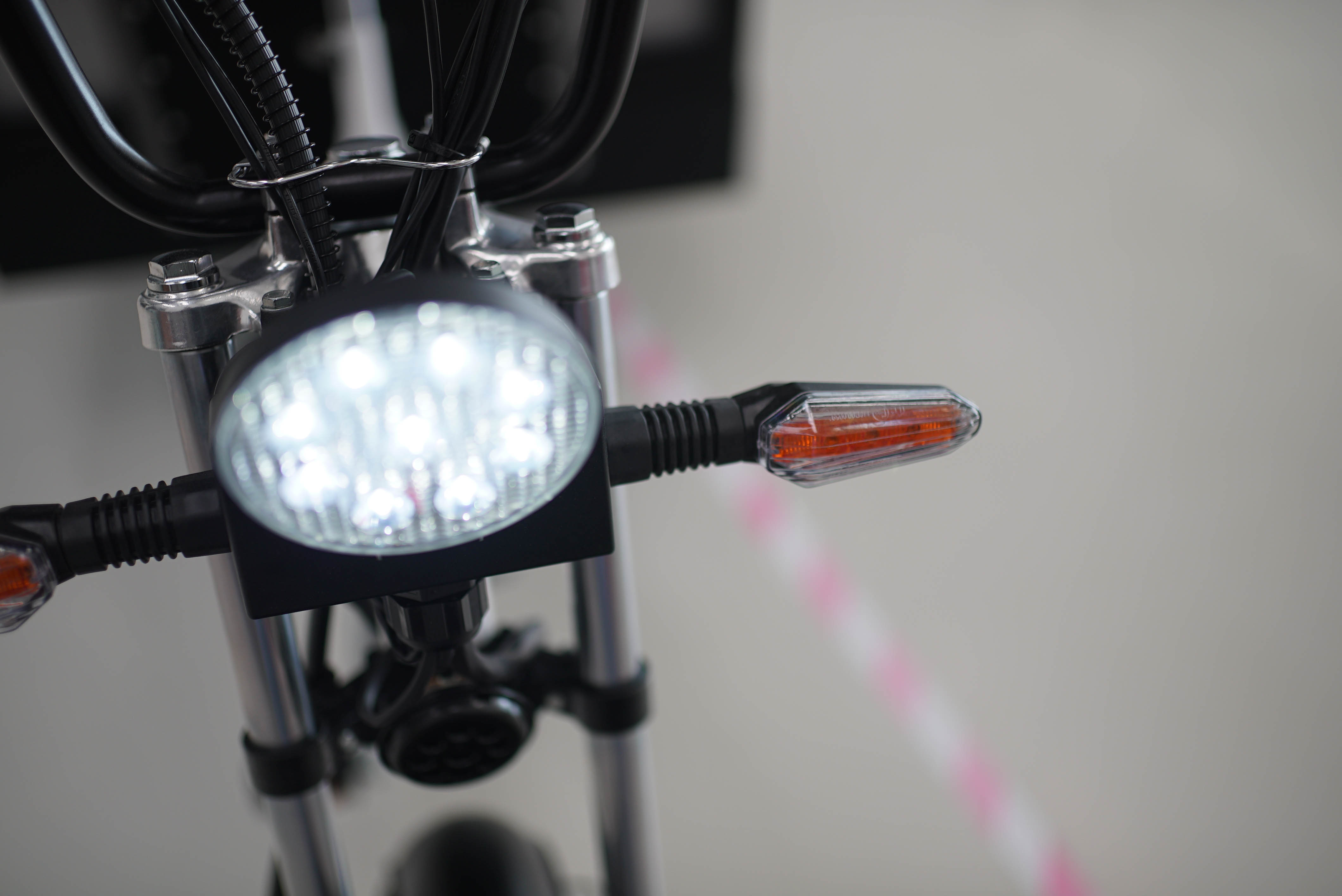

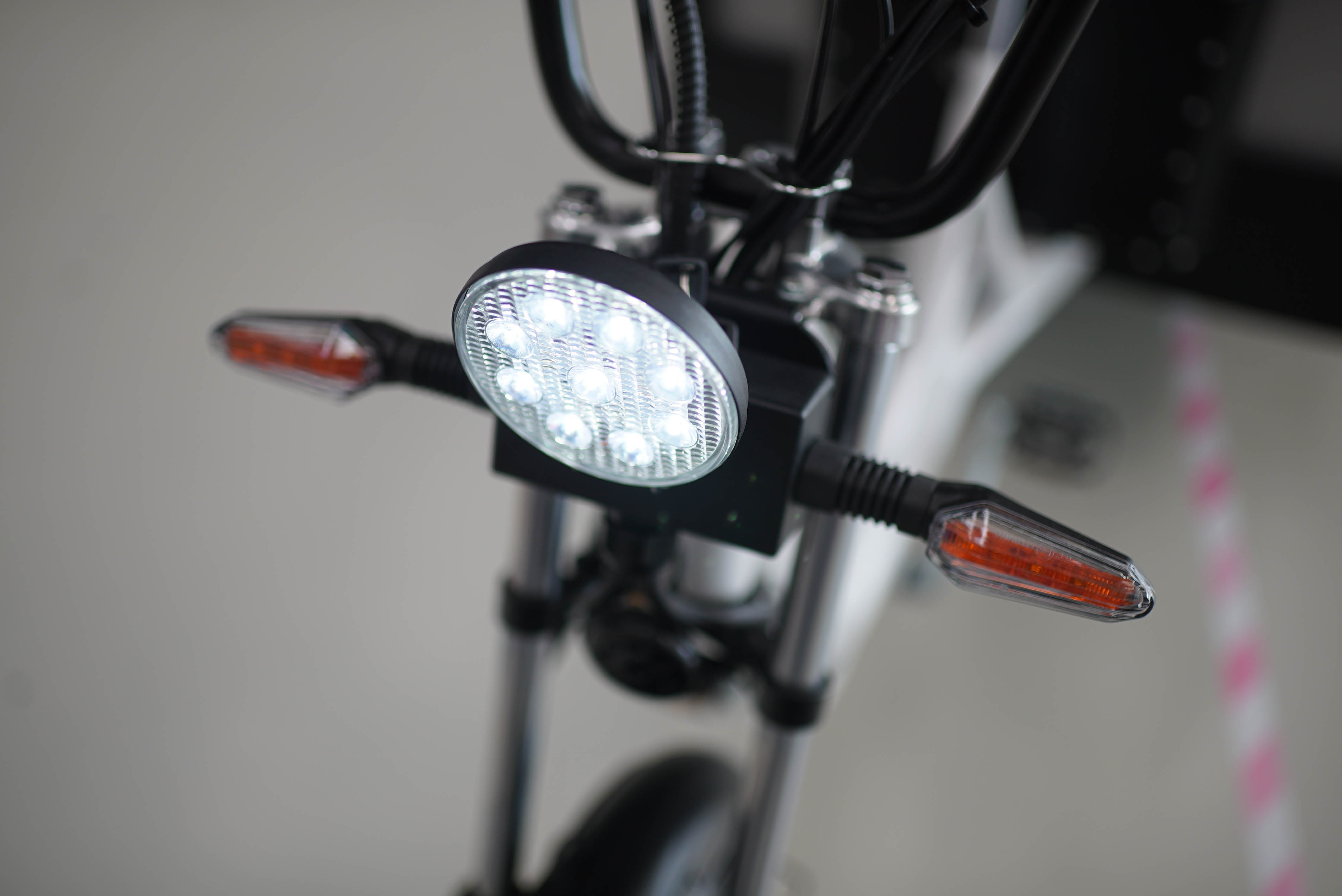

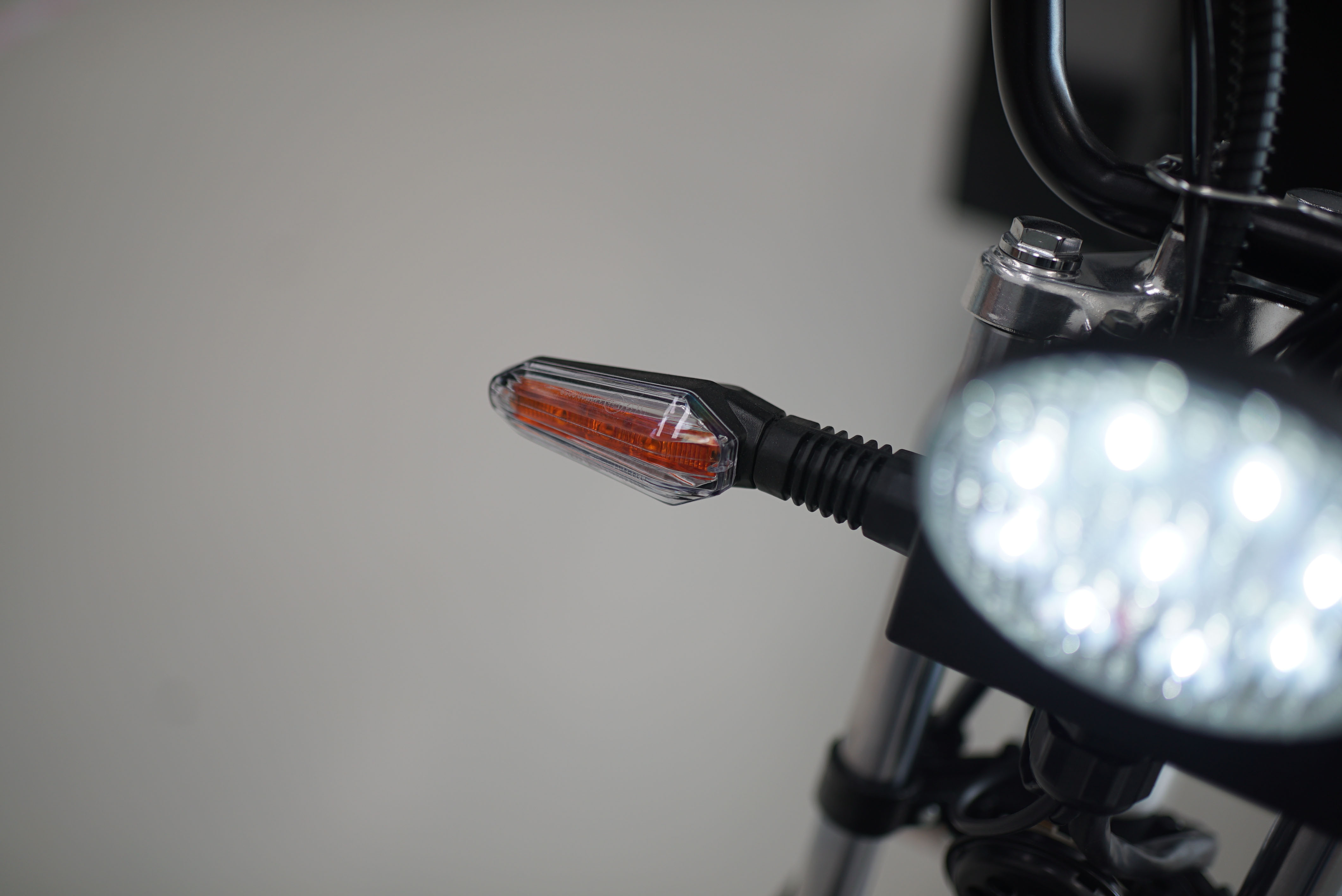

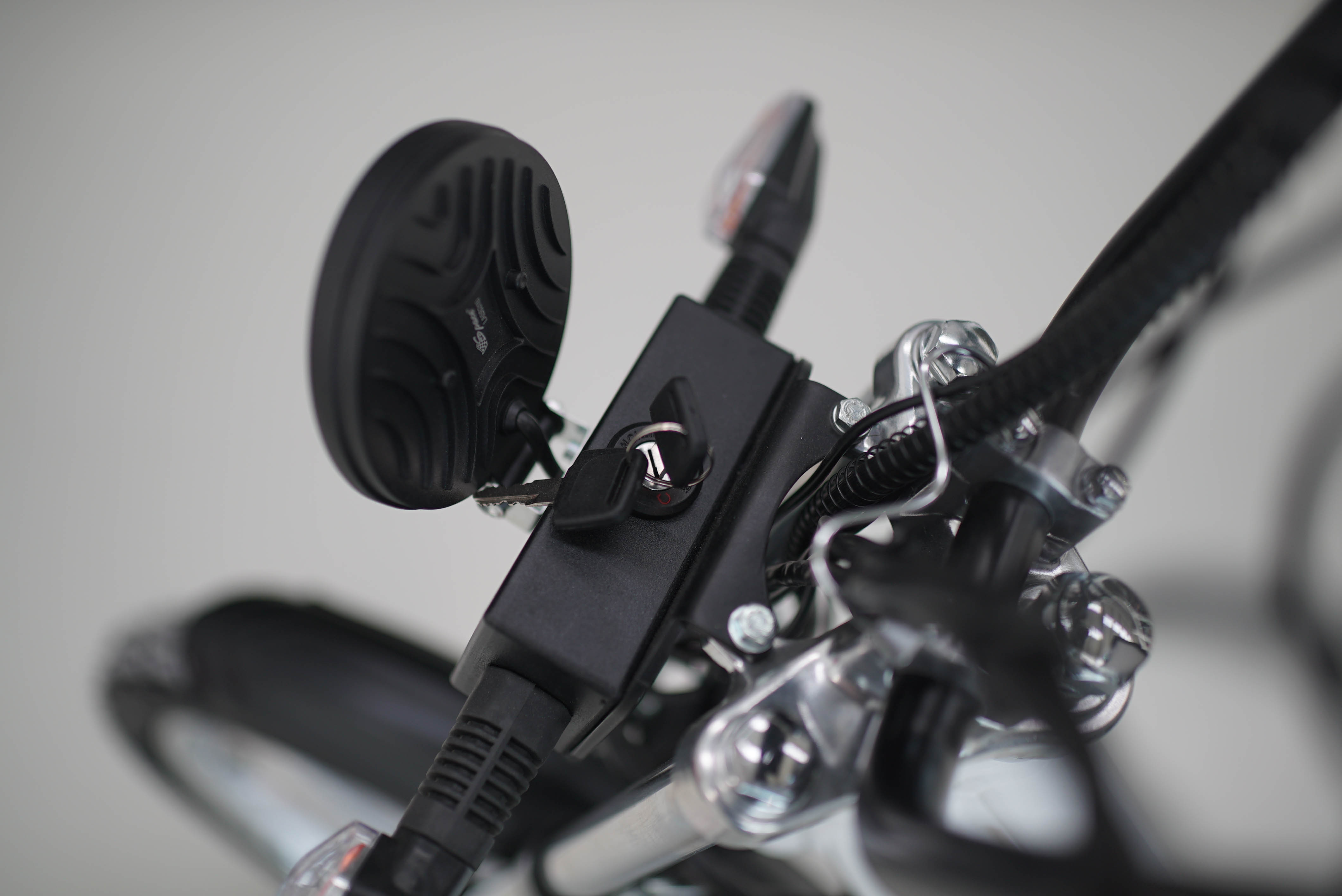

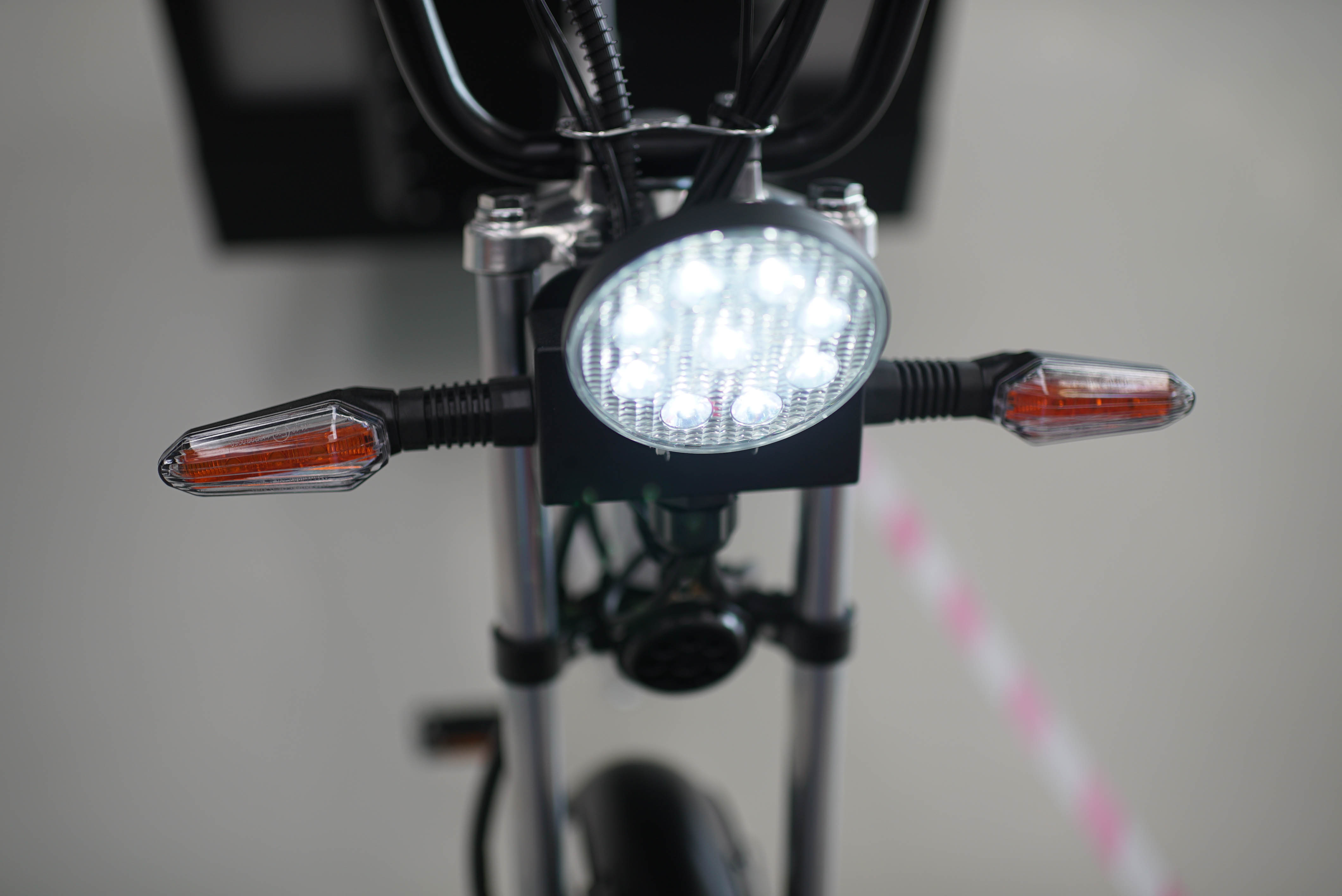

Lighting   LED Headlight + 2 x Taillights (multifunctional), Indicators
Paint Scheme   Impact resistant powder coating (electrostatic painting) in pure White (RAL9010) or anthracite grey (RAL7016)
Weight/Max. Total Weight*   180 kg / max. 500 kg
Dimensions (LxWxH)*   294 cm x 109.5 cm x 180 cm

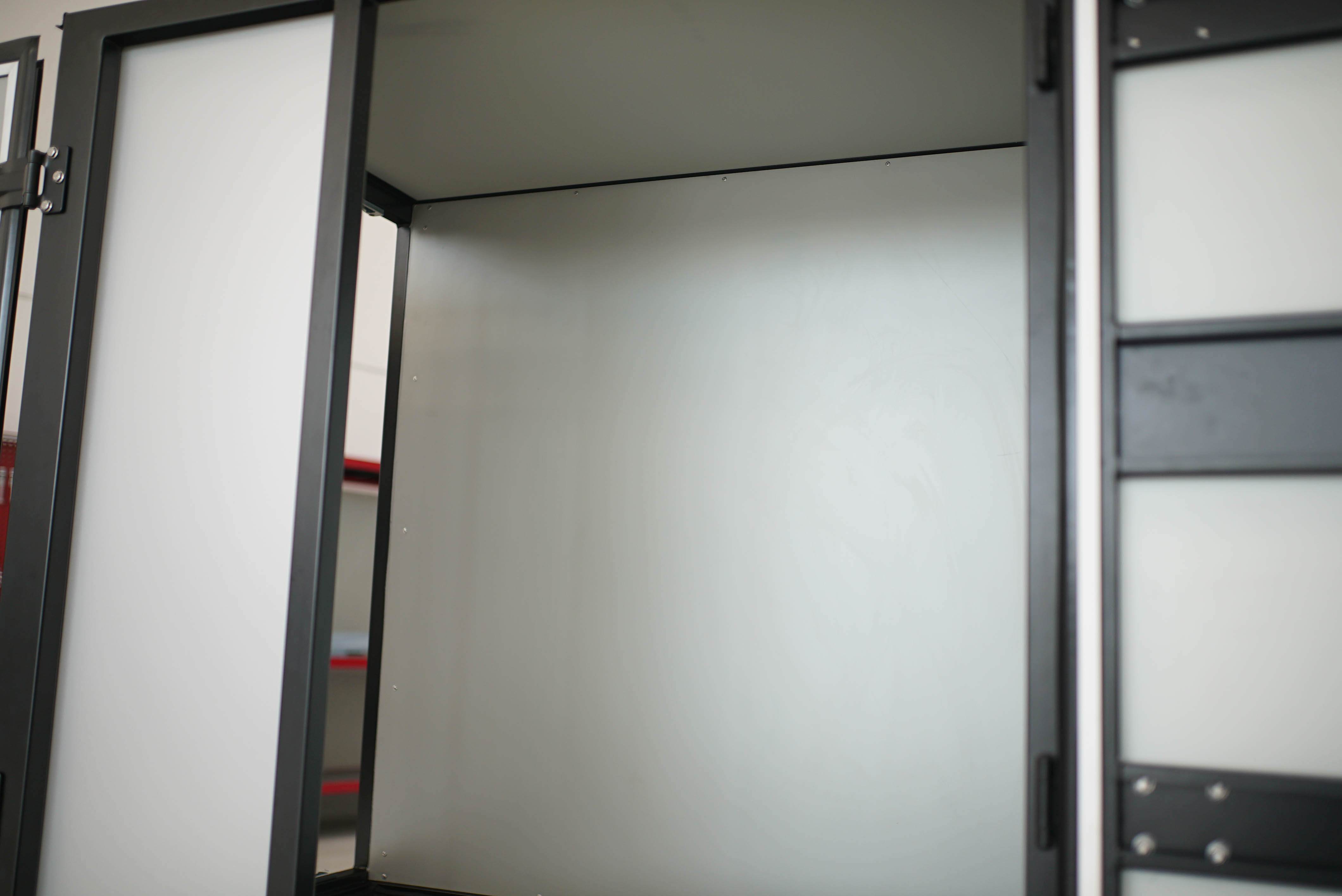

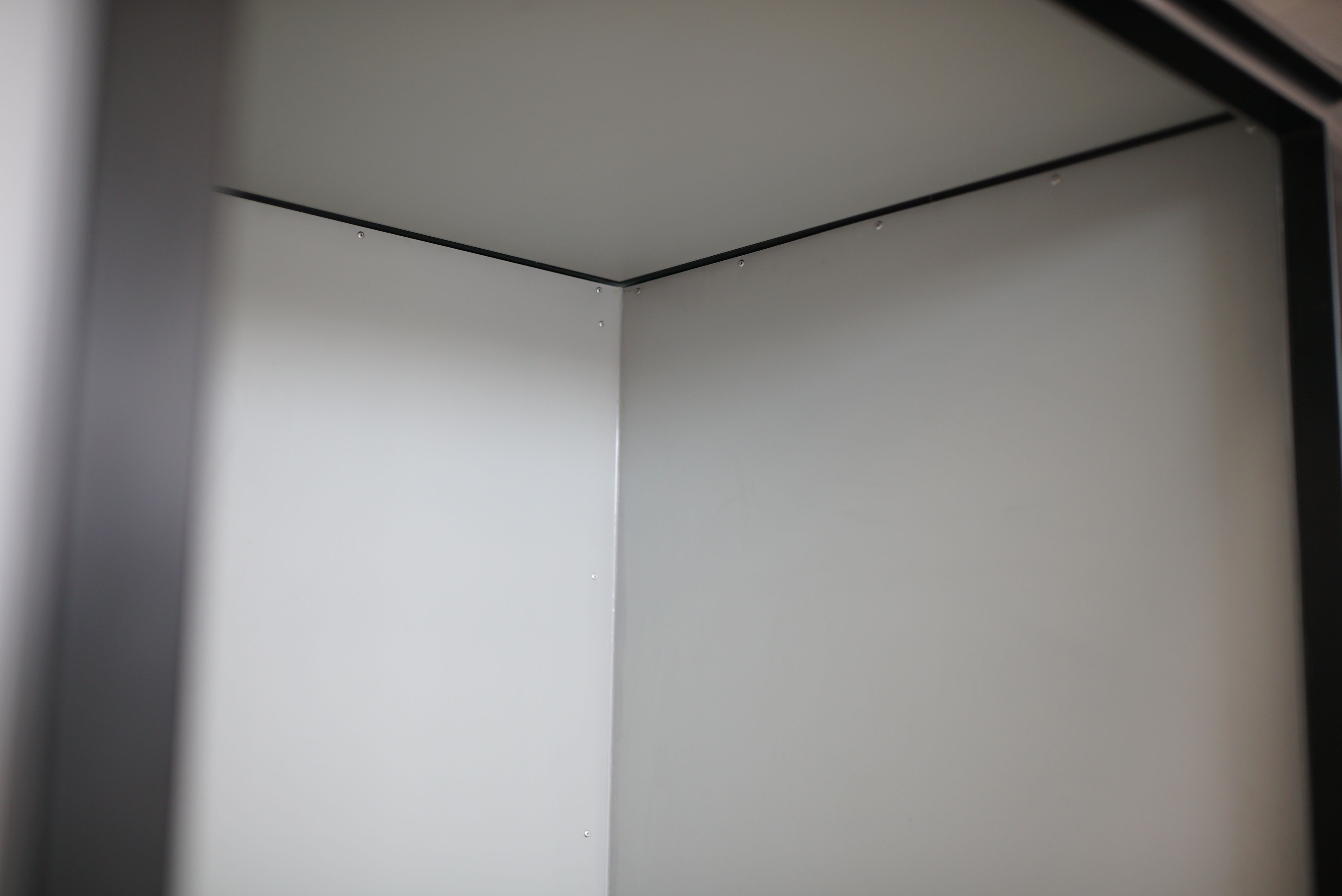

CARGO-Box Volume/Inner Dimensions (LxWxH)*   1.49 m³ / 135 cm x 85 cm x 130 cm

Standard Features   ▪ Reverse gear, solid 25mm rear axle with differential gear, loading door (back), mudguards, parking brakes

Optional Features   ▪ Engine variants: VALEO, BOSCH, BAFANG etc.
    ▪ Replacement LiFePo4 battery (Standard: 1152 Wh) or customized battery variants
    ▪ Paint finish in RAL colors, customized branding, foll coating and/or LED Paneling

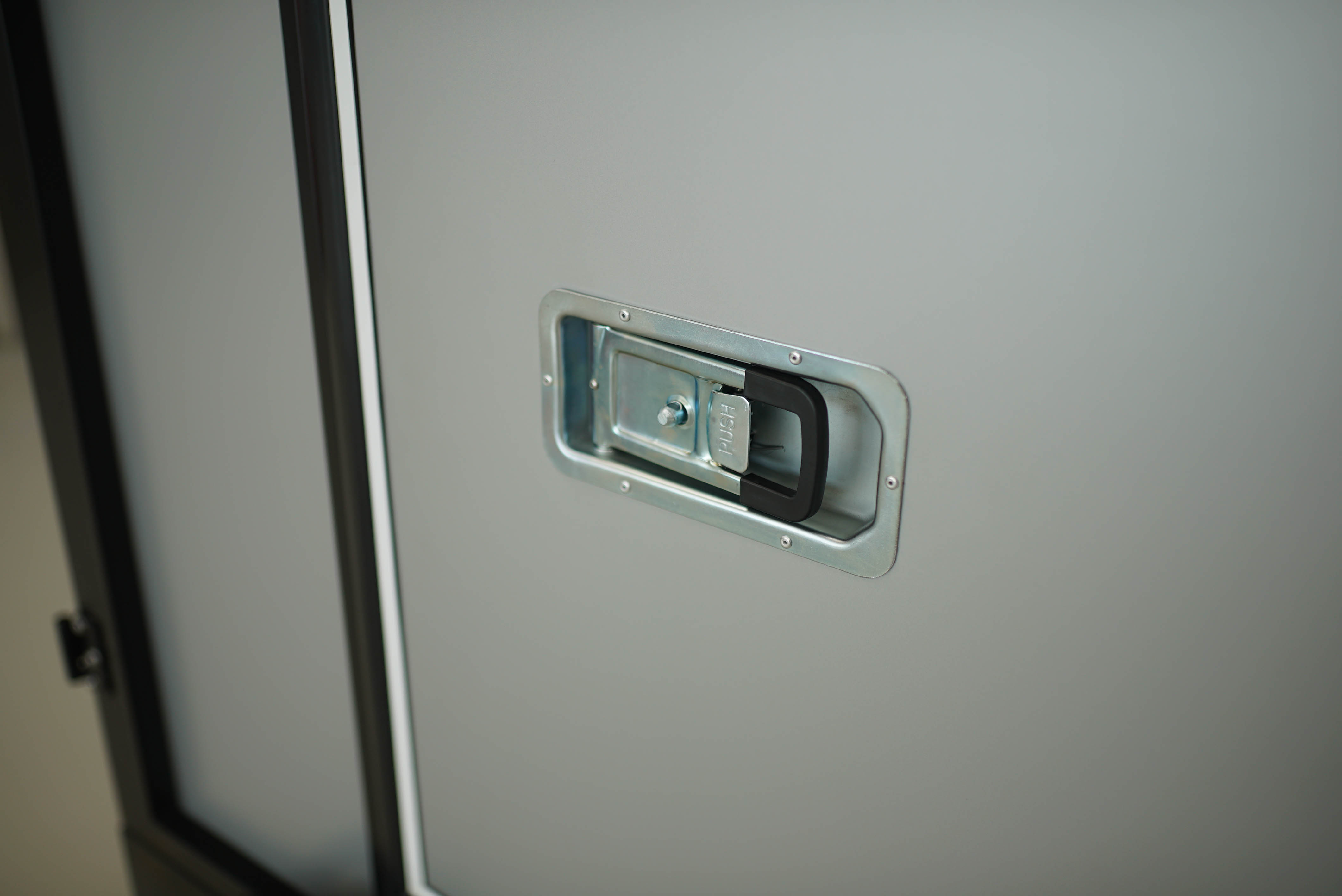

    ▪ Custom CARGO-Box options: 2nd loading door (side), Isotherm Paneling, LED Lighting inside etc.
    ▪ Rearview mirror, Rain/Sun Cover
    ▪ SUPREME DUTCH Airless Tires
    ▪ SCHWALBE PICKUP E-CARGO Tires 20"
    ▪ ALLIGT CARGO-Wheels (CBW5 Hybrid)



* State of Planning 04/2024: All dimensions and weights are approximate figures which are based on prototypes and may differ in serial
production. In addition, they depend on customer's specific system configuration as optional features might have a changing effect.

DATASHEET DOWNLOAD

Technical Document DOWNLOAD
